Please refer to the relevant Peach Connect Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Media Encoder CC. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Peach Connect.
The encoding process and final quality of files remain the responsibility of the supplier. Peach cannot accept liability for incorrect or low-quality encoding.

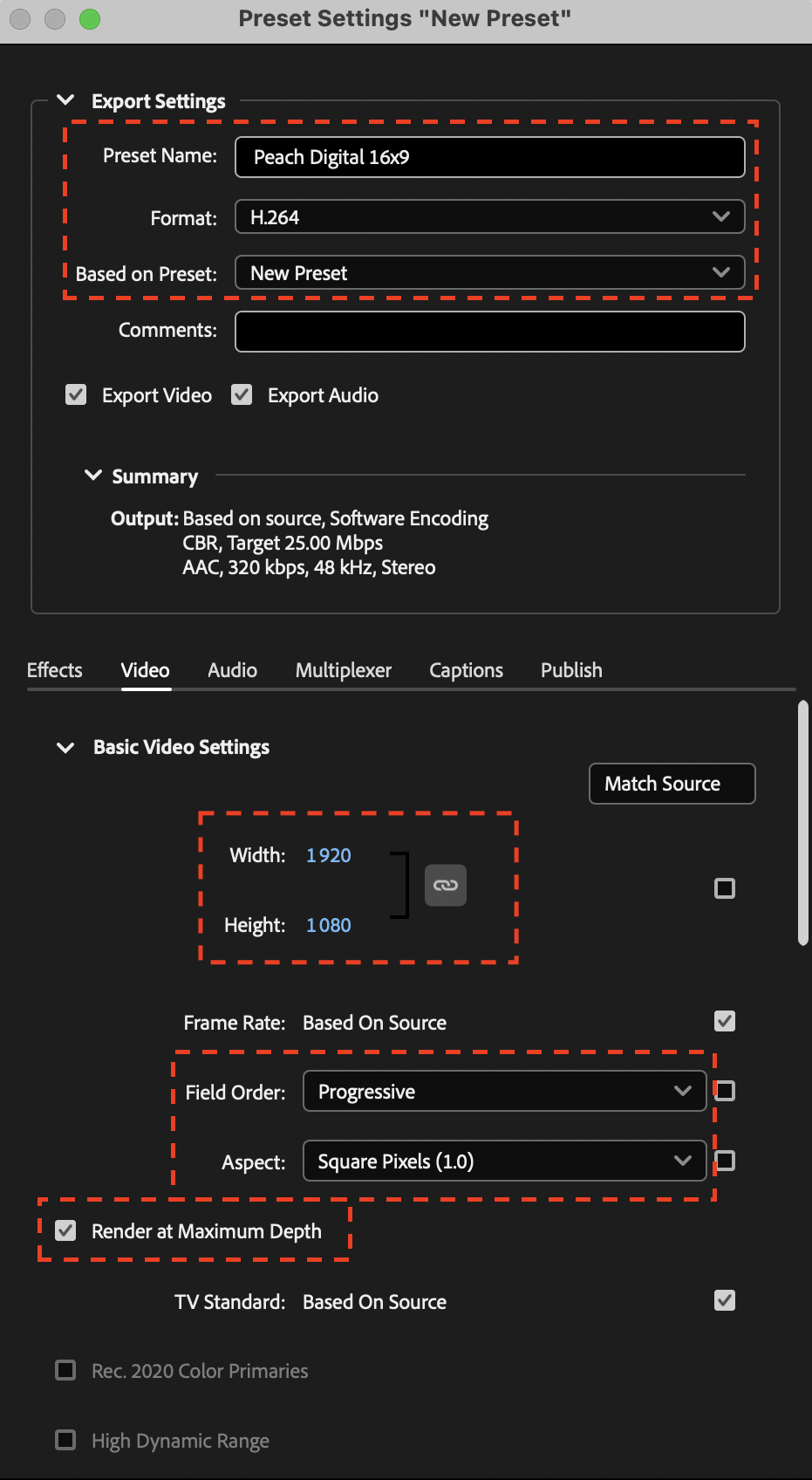

Export Settings
Select | Preset, Create Encoding Preset... |
Preset Name | e.g. Peach Digital 16x9, Peach Digital 1x1 etc |
Format | H264 |
Based on Preset | New Preset |
Video Tab
Height & Width | 1920 x 1080 (16:9) |
1080 x 1080 (1:1) | |
1080 x 1920 (9:16) | |
1080 x 1620 (2:3) | |
1080 x 1440 (3:4) | |
1080 x 1350 (4:5) | |
Frame Rate | 23.976, 24, 25, 29.97 or 30 |
Field Order | Progressive |
Aspect | Square Pixels (1.0) |

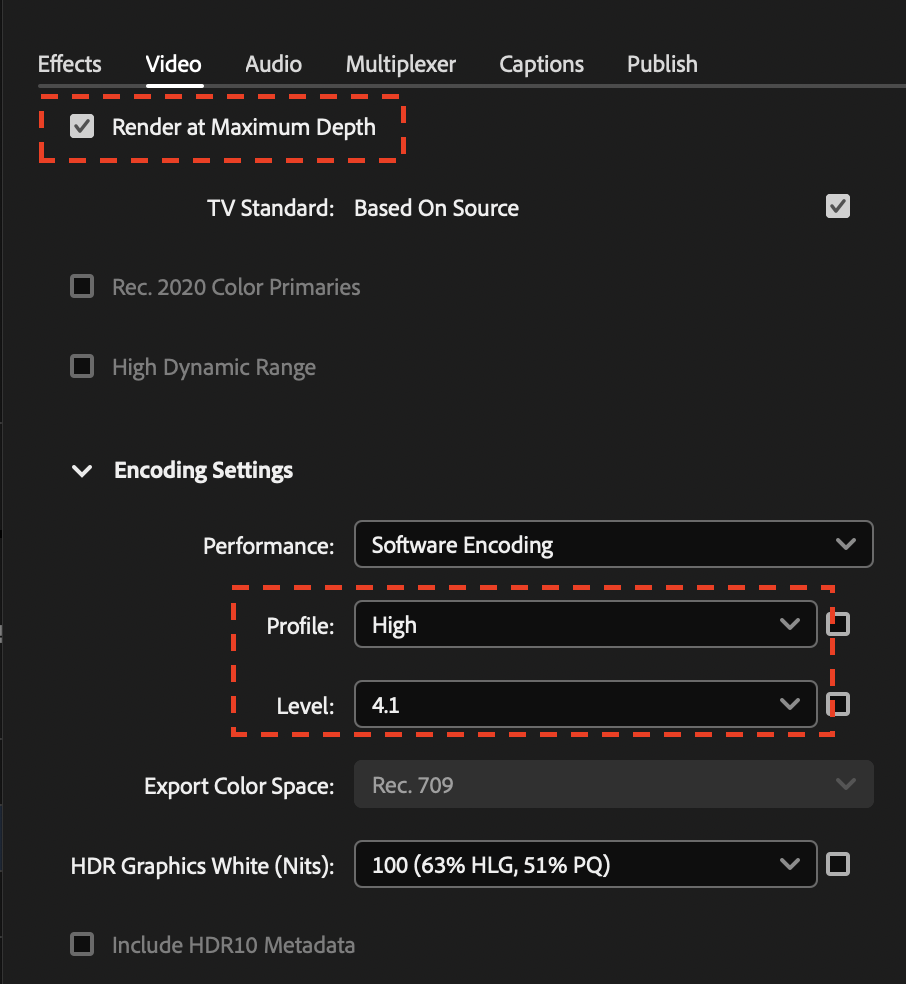

Select | Render at Maximum Depth |
Profile | High |
Level | 4.1 |

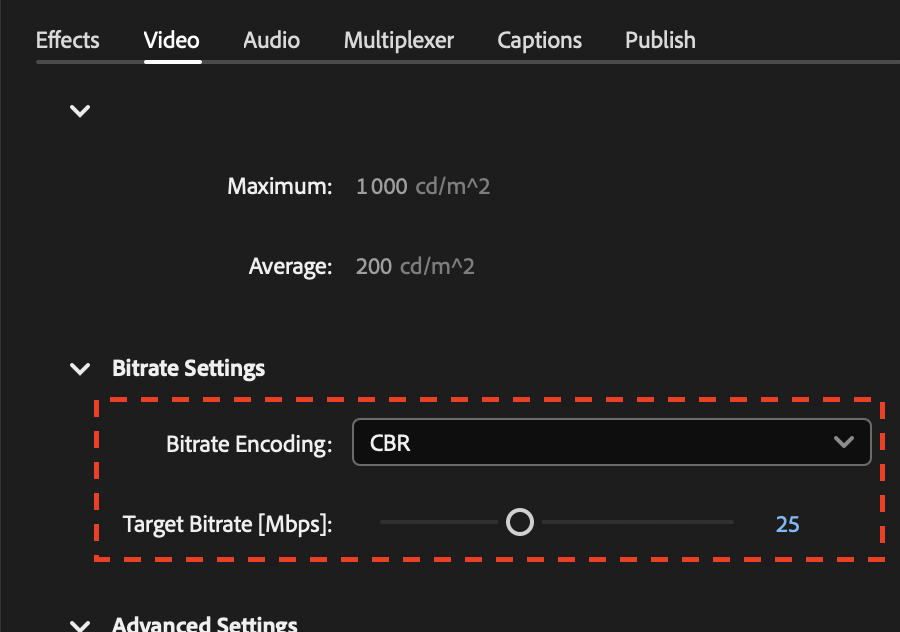

Bitrate Encoding | CBR |
Target Bitrate [Mbps] | Between 10-70 |

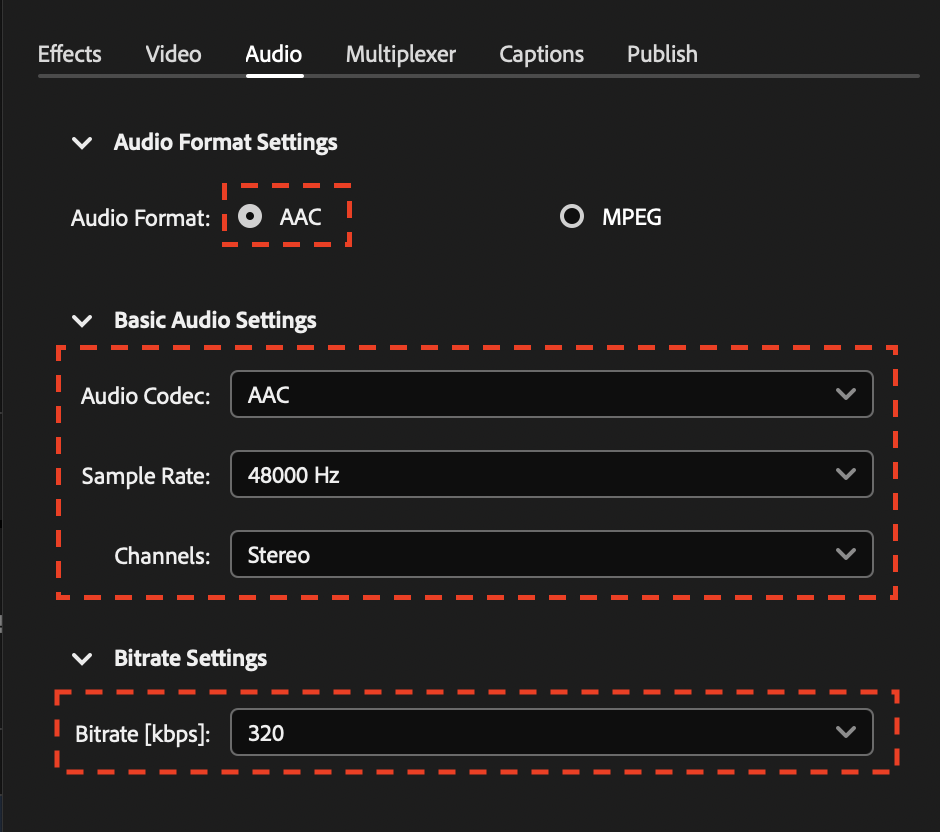

Audio Tab
Audio Format | AAC |
Sample Rate | 48000 Hz |
Channels | Stereo |
Bitrate [Kbps] | 320 |

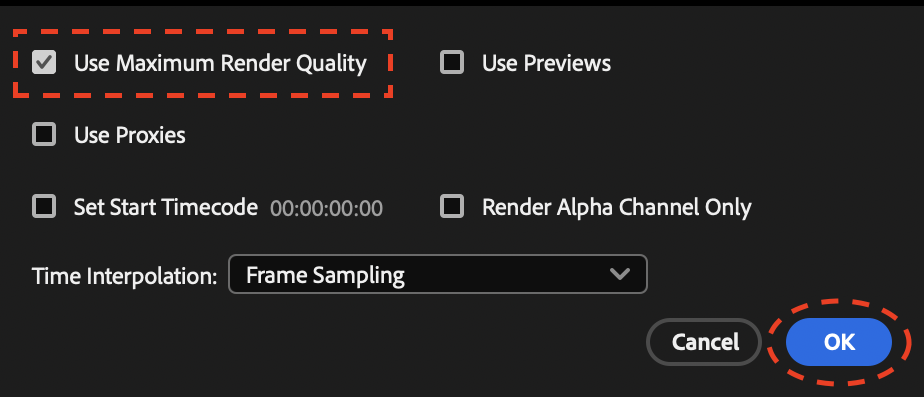

Export
Select | Use Maximum Render Quality |
Select | OK to Save File |
Media Browser
Navigate | To the Master File to be transcoded |
Right Click | The Master Files |
Click | Import into Queue |

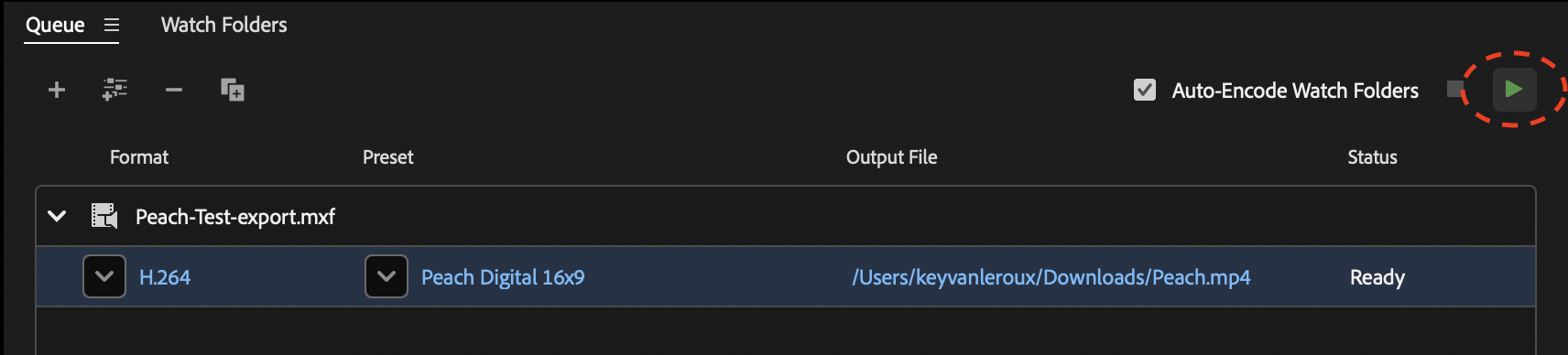

Queue Window
Format | H264 |
Preset | Newly Created Preset (e.g. Peach Digital 16x9) |
Output File | Choose Export Locations and Name File (Should match VersionID) (.mp4) |
Click | Save |
Click | Green Play Icon or Press Return to Export File |
Chrominance & Luminance Levels
Some sequences may require a Video Limiter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
To apply a Video Limiter set the following Effect during the Export Process

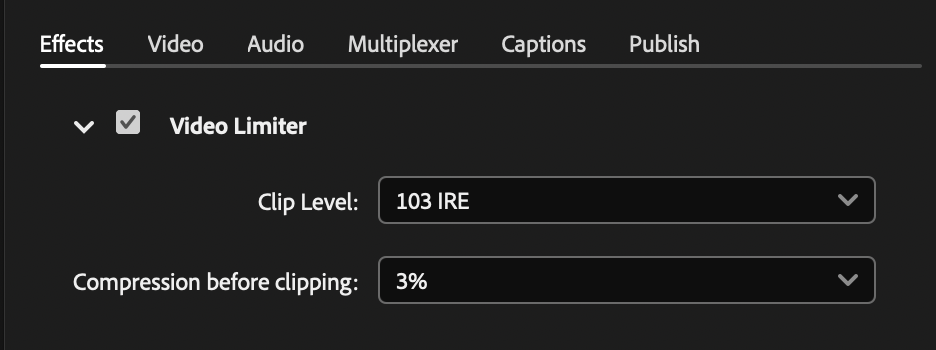

Effects Tab
Select | Video Limiter |
Clip Level | 103 IRE |
Compression before clipping | 3% |
