Todos os arquivos carregados na Peach são verificados imediatamente por meio de um processo Auto QC. Para garantir que os arquivos não sejam rejeitados, siga as diretrizes abaixo.
HD (1080/50i) | |
Container | MXF (OP1a) |
Video | |
Codec | XDCAM HD422 |
Format Profile | 422P@HighLevel |
Frame size | 1920 x 1080 |
Aspect Ratio | 16:9 |
Frame rate | 25 fps |
Interlacing | Upper Field First |
Bitrate | 50 Mbps |
Chroma Subsampling | 4:2:2 |
GOP Length | 12 (M=3, N=12) |
Audio | |
Format | PCM (Little Endian) |
Channels | 2 (1 channel per stream)* |
Sample Rate | 48 kHz |
Bit Depth | 16 bits / 24 bits |
* Observação: a Romênia requer um layout de áudio de 4 canais. Veja abaixo os detalhes.
Layout do arquivo
Os arquivos devem ter a duração exata; apenas conteúdo da TVC. Não é necessário claquete, barras, quadros negros, espera, congelamento ou tom de áudio é necessário, antes ou depois do vídeo.
Reino Unido e da Irlanda

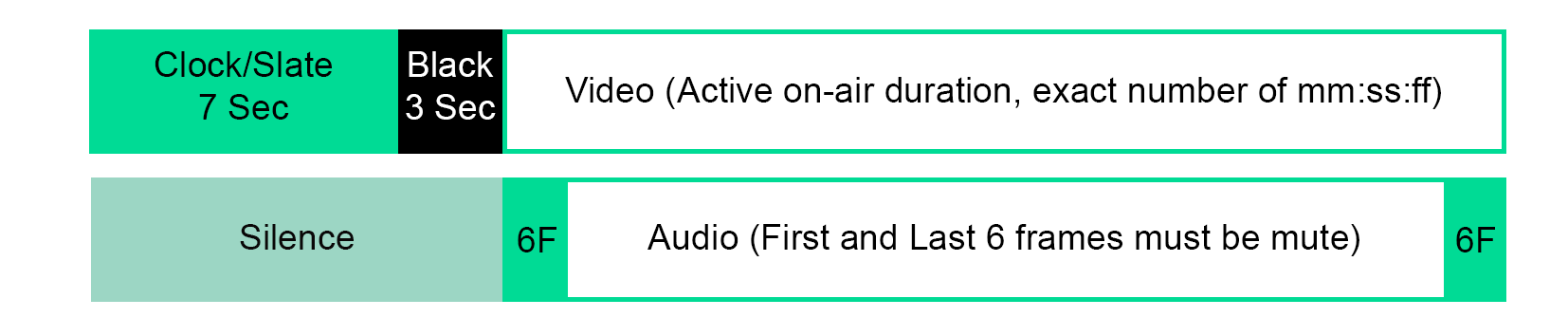

Com exceção do Reino Unido e da Irlanda, que exigem claquete por 7 segundos, seguidos por 3 segundos de black como pré-rolagem. A claquete deve conter as seguintes informações:
Anunciante, Clock Number, Título Duração
Níveis de vídeo
Os níveis devem estar de acordo com as recomendações ITU BT.709, e EBU R103-2000:
Luma = Level 16-235 (not RGB 0-255 level), equivalente a 0% - 100% ou
0mV - 700mV. Chroma = Level 16-240, equivalente no máximo 100% RGB.
Todo o conteúdo deve ser Upper Field First e deve estar livre de artefatos de codificação, interrupções, falhas, bloqueios, problemas de entrelaçamento ou aliasing excessivo e com qualidade de transmissão considerada em todo o conteúdo.
Níveis de áudio
Salvo contrário, o nível de pico real do áudio não deve exceder -1dBTP para mixagens de volume (-23LUFS/-24LKFS) e pico (-10dBFS).
O áudio deve estar livre de distorções, falhas ou sibilância excessiva e deve estar em fase e em sincronia com o vídeo.
Safe Area
Certifique-se de que todo o texto na tela esteja livre de erros ortográficos e gramaticais e dentro da área segura relevante, de acordo com as recomendações da EBU R95-2017 .
HD Safe Areas 1920x1080 Interlaced
Text Safe Area |
Height (Top & Bottom) |
Width (Left & Right) |
16:9 Action Safe | 3.5% (38 Pixels) | 3.5% (67 Pixels) |
16:9 Title Safe | 5% (54 Pixels) | 5% (96 Pixels) |
14:9 Action Safe | 3.5% (38 Pixels) | 10% (192 Pixels) |
14:9 Title Safe | 5% (54 Pixels) | 15% (284 Pixels) |
4:3 Action Safe | 3.5% (38 Pixels) | 15.1% (286 Pixels) |
4:3 Title Safe | 5% (54 Pixels) | 16.25% (312 Pixels) |
Quando especificado, use a Área de Segurança de Texto SD ao enviar para destinos SD.
Especificidades por país
Balcãs (Albânia, Montenegro, Sérvia) |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 16:9 Action Safe |
Bósnia and Herzegovina |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
Bálticos (Estônia) |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Bielorrúsia |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Title Safe |
Benelux (Bélgica, Luxemburgo, Holanda) |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Bulgária |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Title Safe |
Croácia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Chipre |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa Text Safe Area: 16:9 Action Safe |
República Tcheca |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Short-term Loud.: -20LUFS Text Safe Area: 16:9 Action Safe |
DACH (Alemanha, Suíça, Áustria) |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Short-term Loud.: -18LUFS max. True Peak: -2dBTP Text Safe Area: 16:9 Title Safe |
Dinamarca |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS) max. True Peak: -1dBTP Text Safe Area: 16:9 Action Safe Observação: ao enviar anúncios para a TV2 Dinamarca, é necessário um máximo de -3 dBTP. |
Finlândia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS) Maximum Momentary Loudness -15 LUFS Short-Term Loudness -20 LUFS max. True Peak: -3 dBTP Text Safe Area: 16:9 Title Safe |
França |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS) max. True Peak: -3dBTP Text Safe Area: 16:9 Title Safe |
Grécia |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 16:9 Action Safe |
Húngria |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) max. True Peak: -3dBTP Text Safe Area: 16:9 Title Safe |
Islandia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Irlanda |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Title Safe |
Itália |
Video Format: HD (1080/50i) Audio Levels: AGCOM 219/09/CSP (-24LKFS ± 0.5LU) Text Safe Area: 16:9 Title Safe |
Casaquistão |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 4:3 Action Safe |
Kosovo |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: HD 16:9 Action Safe / SD 4:3 Action Safe |
Letônia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Lituânia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Title Safe |
Malta |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Maldova |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Action Safe / SD 4:3 Action Safe |
Países Nórdicos (Noruega, Suécia) |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Macedônia do Norte |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Polônia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Title Safe |
Portugal |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Romenia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Short term Loud: -20LUFS Momentary Loud: -15LUFS Audio Layout: Ch 1 & Ch 2 Stereo Mix Ch 3 & Ch 4 Stereo Music & FX Text Safe Area: 16:9 Title Safe |
Rússia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 14:9 Title Safe |
Eslováquia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Eslovênia |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Action Safe |
Espanha |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 16:9 Action Safe |
Ucrânia |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Action Safe / SD 4:3 Action Safe |
Uzbequistão |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 4:3 Action Safe |
Reino Unido |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 0.5LU) Text Safe Area: 16:9 Title Safe |
