Please refer to the relevant Peach Connect Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Apple Compressor. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Peach Connect.
The encoding process and final quality of files remain the responsibility of the supplier. Peach cannot accept liability for incorrect or low-quality encoding.
Compressor Set Up
New Setting
Click | The + icon in the bottom left corner |
Select | New Setting |
Format | QuickTime Movie |
Name | e.g. Peach ProResHQ |
Click | OK |
Then open the Inspector (top right corner button) and apply the below settings:
Inspector - General Tab
Default Location |
Select a default location of your choosing (you can create custom locations from the Locations tab in the left panel) |
Retiming |
100% - Default You can also export a file to a given duration by using Set to and entering the relevant TimeCode |

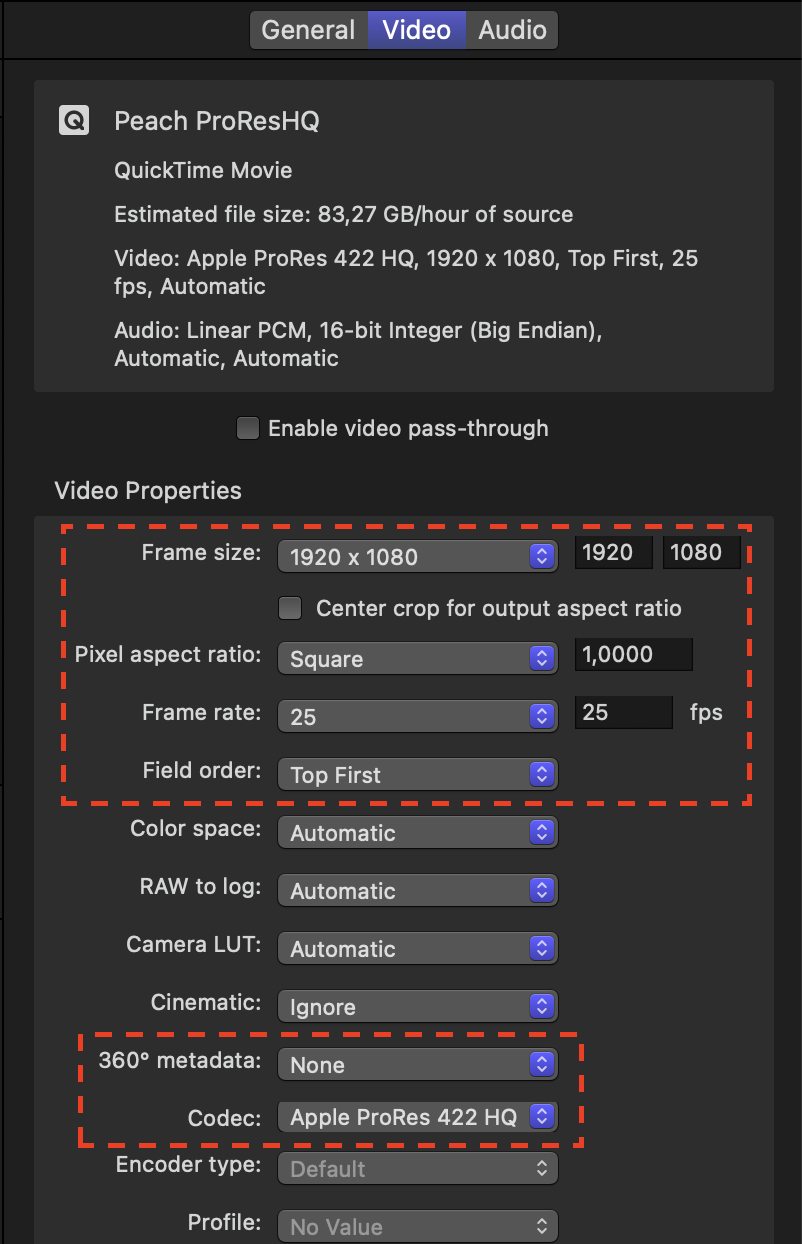

Inspector - Video Tab
Frame size | 1920 x 1080 |
Pixel Aspect Ratio | Square |
Frame Rate | 25 or 29.97 as required |
Field Order | Top First |
360° metadata | None |
Codec | Apple ProRes 422 HQ |
Inspector - Audio Tab
Channel Layout | 2 Discrete Channels |
Sample Rate | 48 kHz |
Sample Size | 16 bit or 24 bit |
Codec | Linear PCM |
Sample Format | Integer (Little Endian) |
Export
Click | Add File... |
Select | Source file on your computer |
Export Setting | Select Newly Created Setting (in CUSTOM dropdown) |
Location | Select File Location |
Click | OK |
Filename | Should Match Version ID |
Click | Start Batch |
Alternatively, you can drag and drop several files at the same time in the Current Batch View and then drag and drop the Newly Created Setting onto them to apply the export setting before clicking on Start Batch.
Please note
Some sequences may require a Video Limiter or Broadcast Safe filter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
Please ensure Audio levels are set correctly before beginning the export process.
