Please refer to the relevant Peach Connect Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from DaVinci Resolve. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat.
The encoding process and final quality of files remain the responsibility of the supplier. Peach cannot accept liability for incorrect or low-quality encoding.

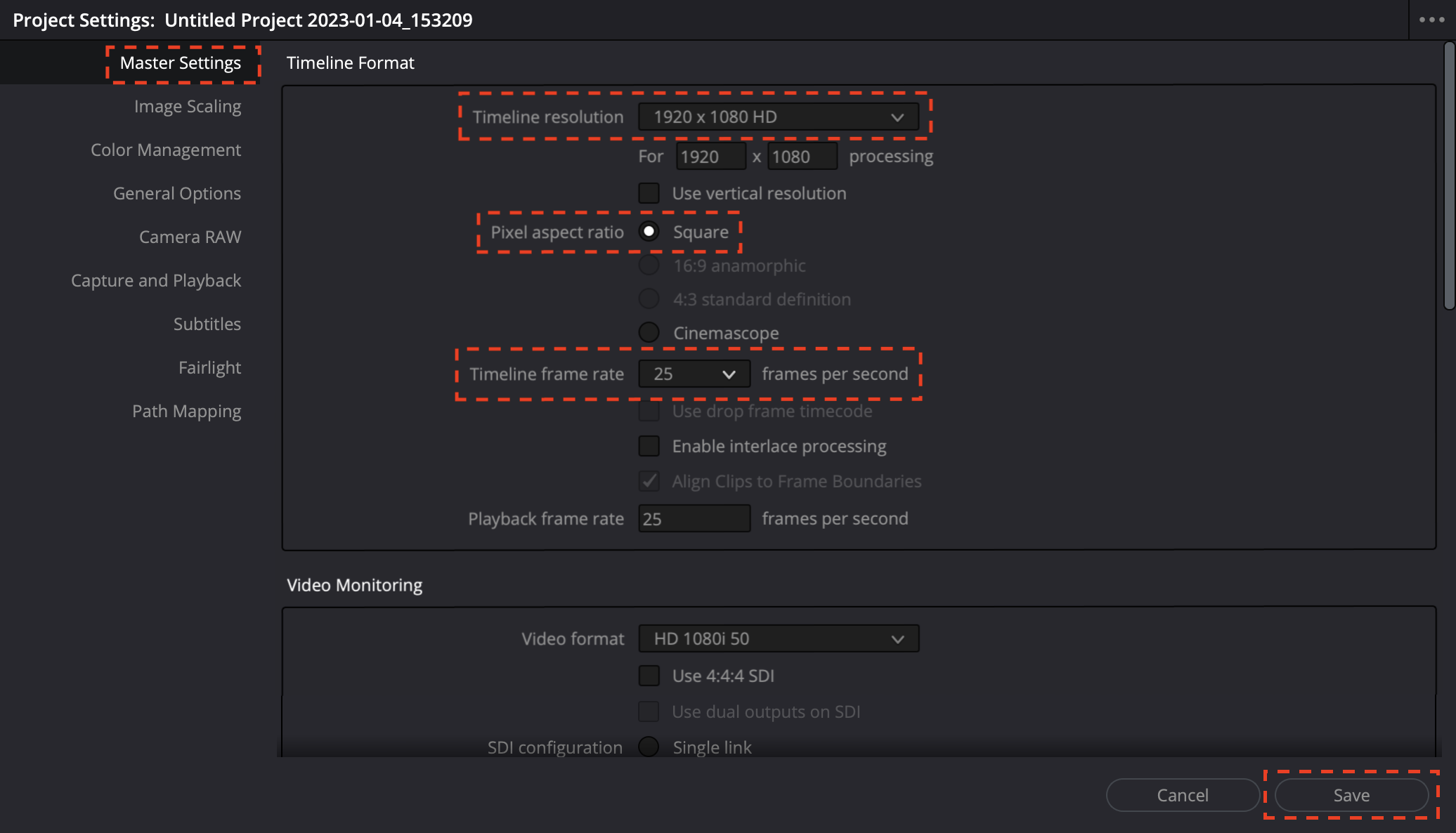

Project Settings
Master Settings
Open | Project Settings (Cog Icon, bottom right) |
Select | Master Settings |
Timeline Resolution | 1920 x 1080 HD (16:9) |
1080 x 1080 HD Square (1:1) | |
1080 x 1920 HD (9:16) | |
1080 x 1620 (2:3) | |
1080 x 1440 (3:4) | |
1080 x 1350 (4:5) | |
Pixel Aspect Ratio | Square |
Timeline Frame Rate |
23.98, 24, 25, 29.97 or 30 |
Click |
Save |
Please Note: Frame Rate must be set correctly before editing as this cannot be changed on export.
Please Note: If your resolution is not available to select from the drop-down, you can tick Use Vertical Resolution, or even select Custom from the drop-down in order to manually set the resolution.
Export Settings

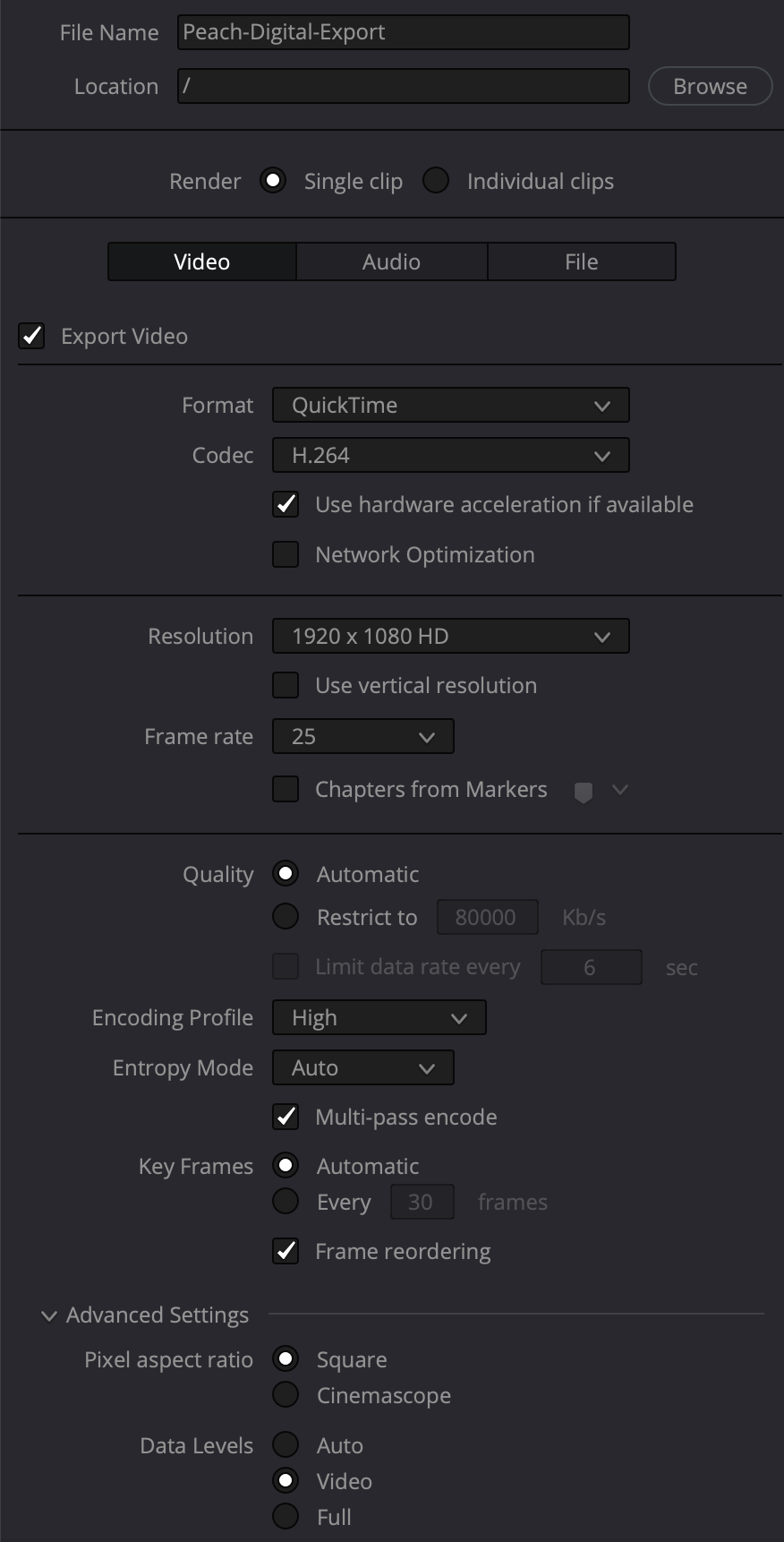

Video Settings
Select | The Delivery Page (Rocket Icon, bottom) |
Select Preset | H.264 - H.264 Master |
File name | Should Match Ad ID |
Location | Set Export Location |
Render | Single Clip |
Select | Export Video |
Format | QuickTime |
Codec | H.264 |
Resolution | 1920 x 1080 HD (16:9) |
1080 x 1080 HD Square (1:1) | |
1080 x 1920 HD (9:16) | |
1080 x 1620 (2:3) | |
1080 x 1440 (3:4) | |
1080 x 1350 (4:5) | |
Frame Rate | 23.98, 24, 25, 29.97 or 30 |
Tick | Multi-pass encode |
Open | The Advance Settings Menu |
Pixel Aspect Ratio | Square |
Data Levels | Video |
Please Note: If your resolution is not available to select from the drop-down, you can tick Use Vertical Resolution, or even select Custom from the drop-down in order to manually set the resolution.
Audio Settings
Select | Audio Tab |
Select | Export Audio |
Codec | AAC |
Bit Rate Strategy | Constant Bit Rate |
Track Data Rate | 320 Kb/s |
Output Track 1 | Bus 1 (Stereo) |
Select |
Add to render queue |

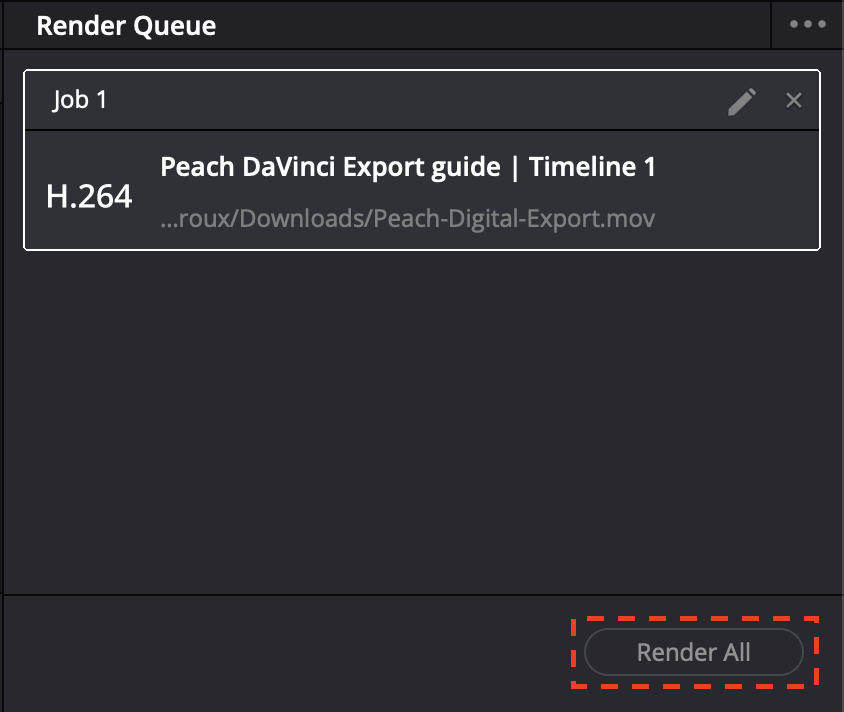

Render Queue
Select | Ensure correct job in highlighted in the render queue |
Select |
Start Render |
Please note
Please ensure Audio levels are set correctly before beginning the export process.
If a file fails QC because of the Bitrate, a source file of higher quality will be needed.
