Please refer to the relevant Peach Connect Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Final Cut Pro X. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Peach Connect.
The encoding process and final quality of files remain the responsibility of the supplier. Peach cannot accept liability for incorrect or low-quality encoding.
Project Set Up
Please ensure the Final Cut Pro X Project is set correctly before beginning the export process. HD export options are only available within an HD project. Project Settings will determine the definition, frame rate and field order of the exported file.

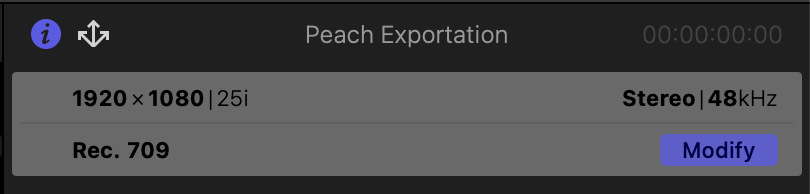

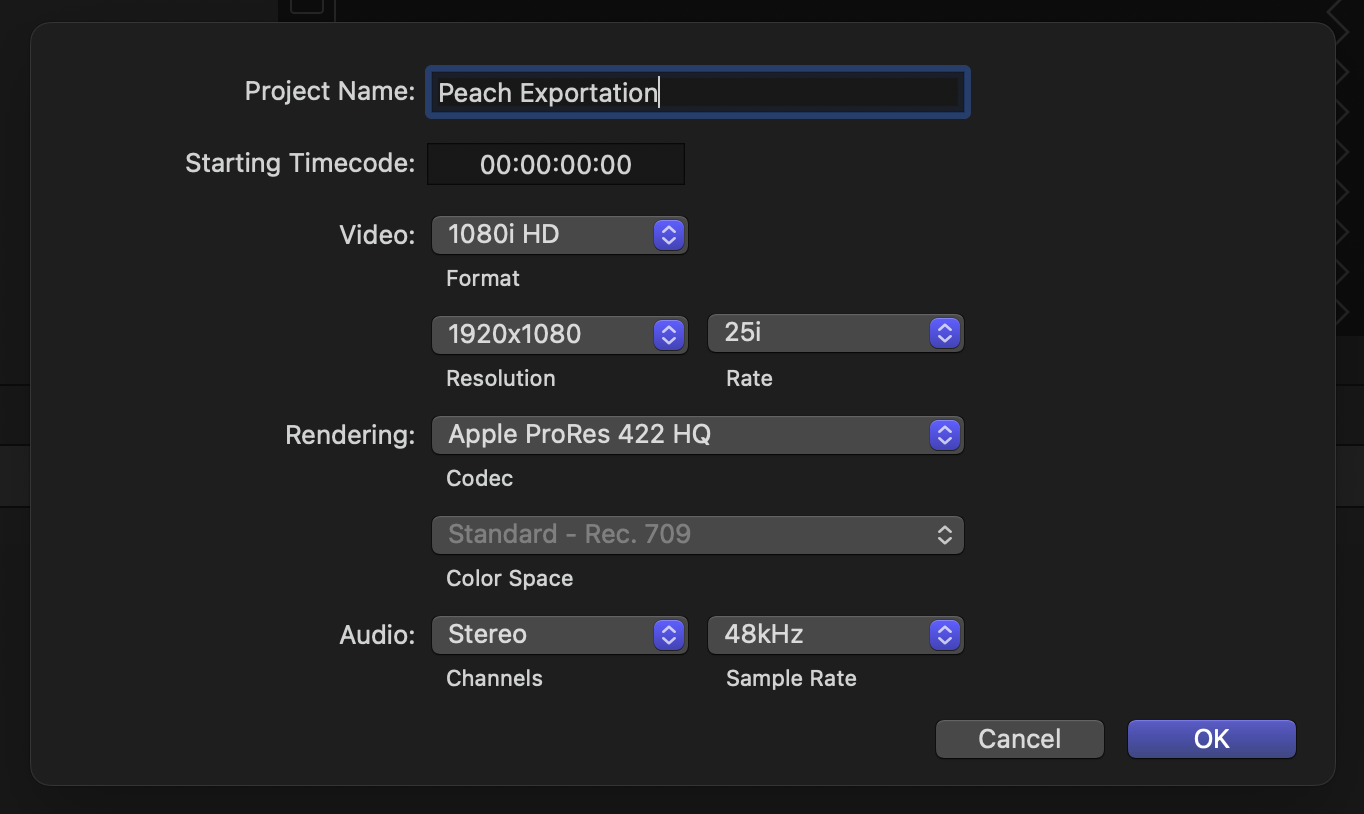

Project Settings
Select | The Final Sequence |
In Inspector Window | Modify |
Video | 1080i HD |
Resolution | 1920x1080 |
Rate | 25ior29.97ias required |
Rendering | Apple ProRes 422 or higher (This is not the final export Codec) |
Audio | Stereo |
Sample Rate | 48kHz |
Click | OK |

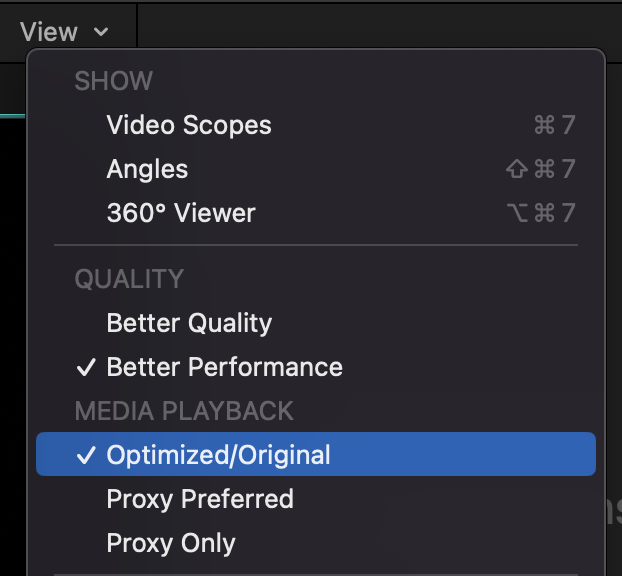

Optimize Output
To ensure the highest quality when exporting the file check the sequence is set to use optimised media to create the shared file.
Select | The Final Sequence |
In Inspector Window | Modify |
Select | Optimized/Original |

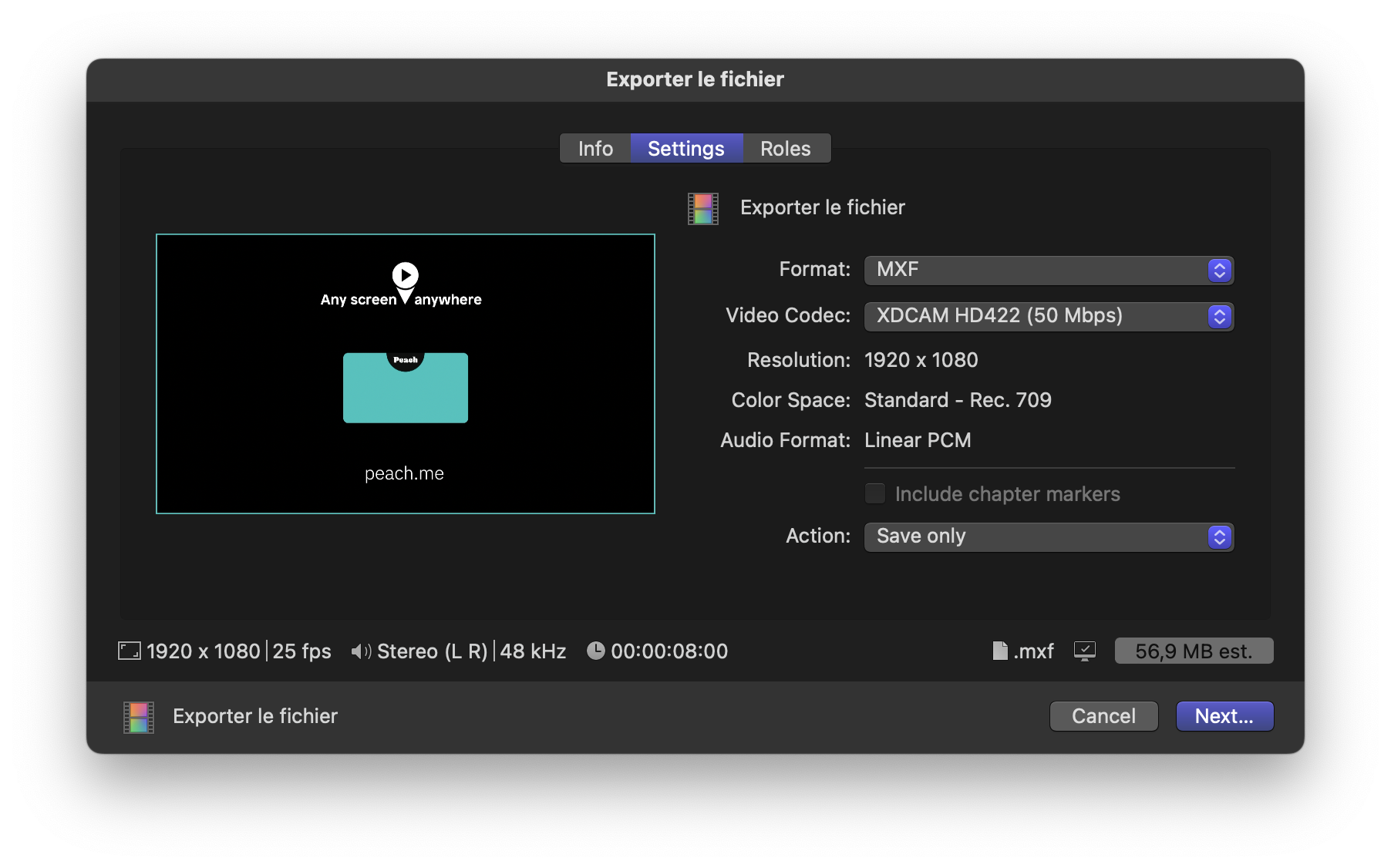

Export Sequence
Select | The Final Sequence |
Select | File, Share, Master File |
Select | Settings |
Format | MXF |
Video codec | XDCAM HD422 (50Mpbs) |
Roles as | Multitrack MXF File |
Audio Output settings can differ depending on the timeline set up | |
Set Audio Channel Output to | Stereo if the timeline consists of Stereo Tracks |
Or | |
Click Add Audio Track | If the timeline consists of Mono Tracks |
Set Audio Channel Output to | Mono for both channels |
Click | Next |

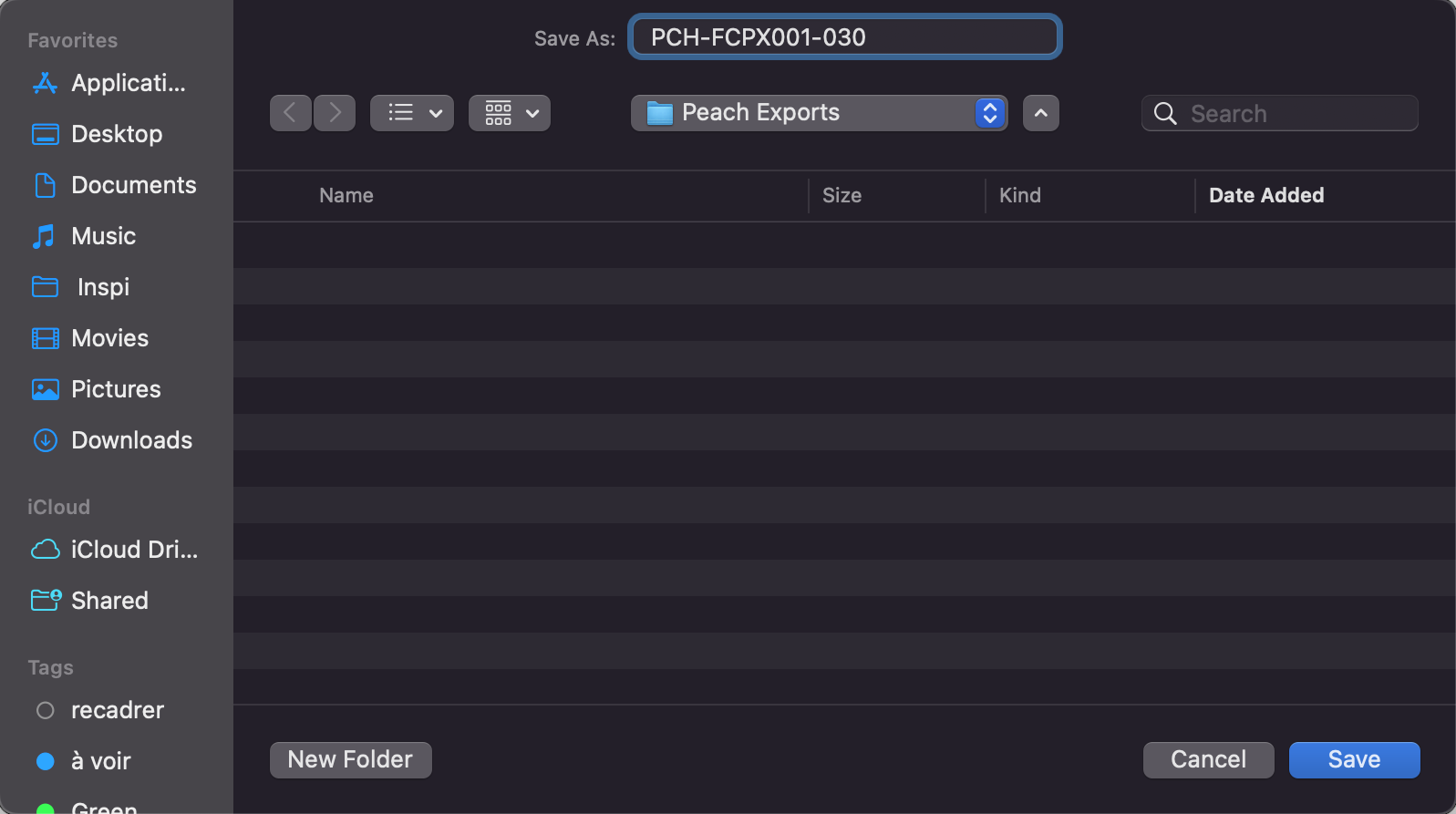

Save As
Save As | Name File(Should match Version ID) |
Choose | File Location |
Click | Saveto Export File |
Please note
Some sequences may require a Video Limiter or Broadcast Safe filter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
Please ensure Audio levels are set correctly before beginning the export process.
