Please refer to the relevant Peach Connect Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Media Encoder CC. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Peach Connect.
The encoding process and final quality of files remain the responsibility of the supplier. Peach cannot accept liability for incorrect or low-quality encoding.
Project Set Up

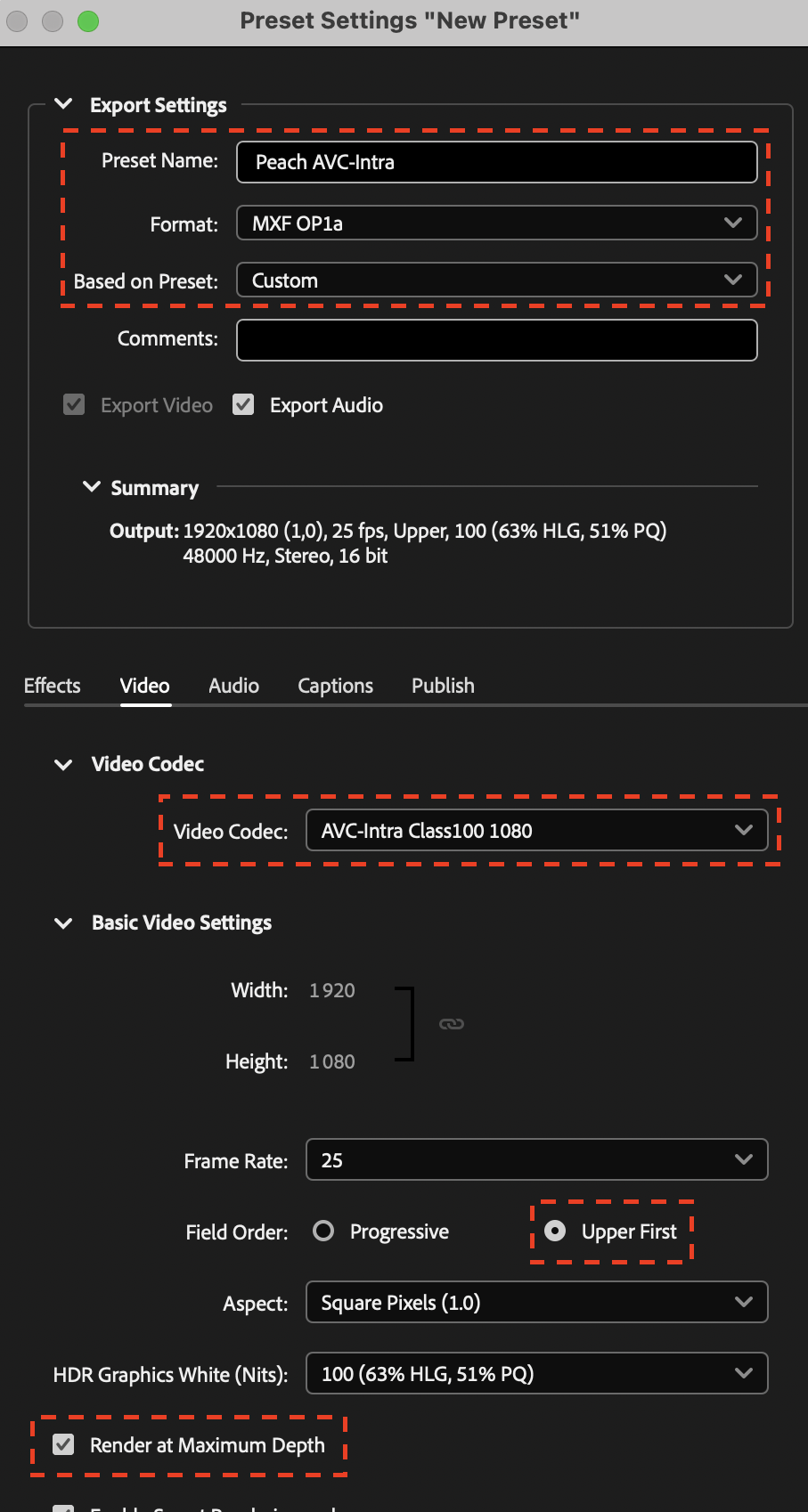

Export Settings
Select | Preset, Create Encoding Preset... |
Preset Name | e.g. Peach AVC-Intra |
Format | MXF 0P1a |
Based on Preset | AVC-Intra Class100 1080 50i |
Video Tab
Video Codec |
AVC-Intra Class100 1080 |
Frame Rate | 25 or 29.97 as required |
Field Order | Upper First |
Select | Render at Maximum Depth |

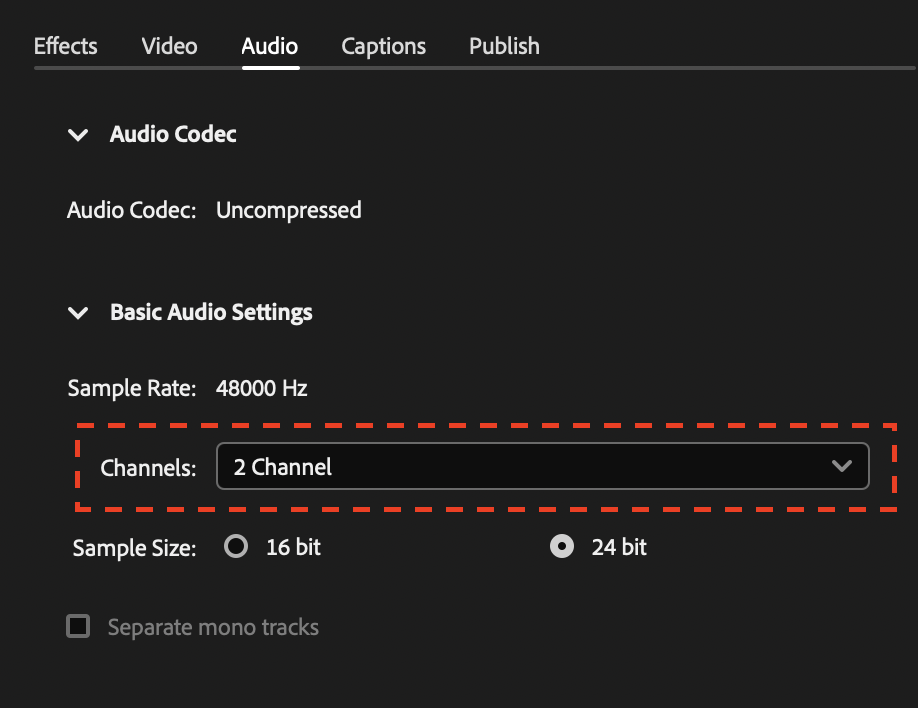

Audio Tab
Select | 2 Channel |
Select | 16 bit or 24 bit |

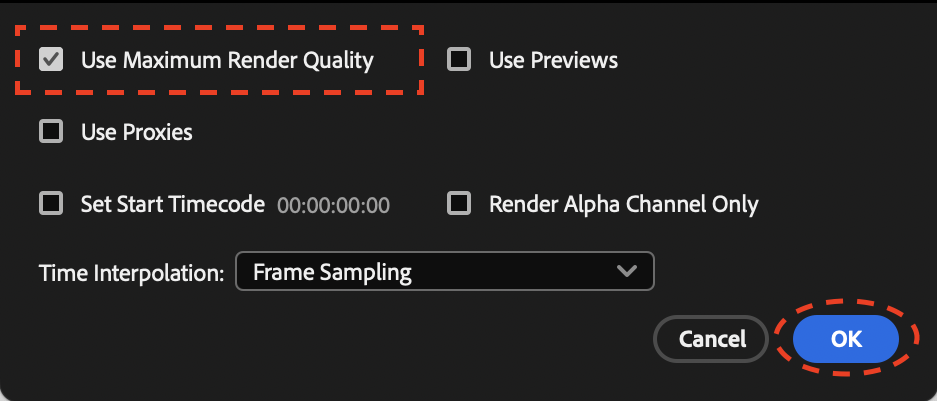

Export
Select | Use Maximum Render Quality |
Click | OK to Save the Encoding Preset |
Media Browser
Navigate | To the Master File to be transcoded |
Right Click | The Master File |
Click | Import to Queue |

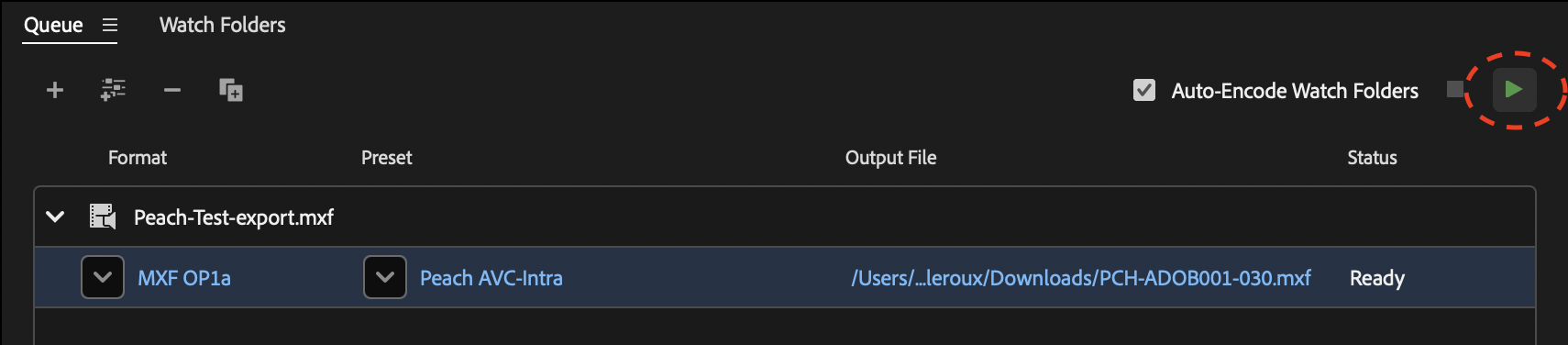

Queue Window
Format | MXF OP1a |
Preset | Newly Created Preset (e.g.Peach AVC-Intra) |
Output File | Choose Export Location and Name File |
Click | Save |
Click | Green Play Icon or Press Return to Export File |
Chrominance & Luminance Levels
Some sequences may require a Video Limiter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
To apply a Video Limiter set the following Effect during the Preset Set Up Process

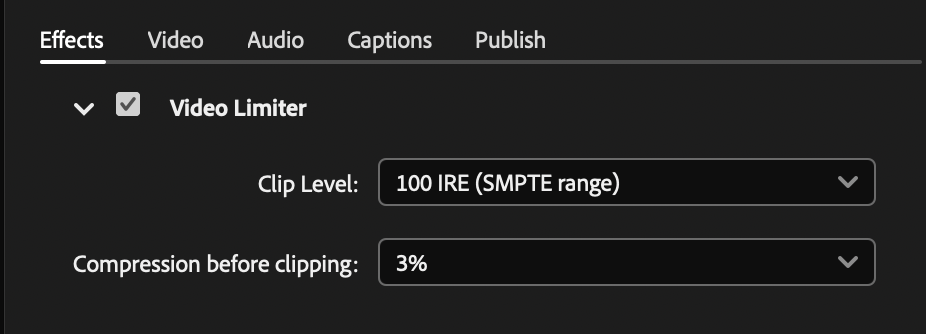

Effects Tab
Select | Video Limiter |
Clip Level | 100 IRE (SMPTE Range) |
Compression before clipping | 3% |
Audio Levels
It is possible to adjust the Audio Level of the sequence on export to meet the required level if the audio in the timeline is not already correct.
To Apply an Audio Adjustment set the following Effect during the Preset Set Up Process

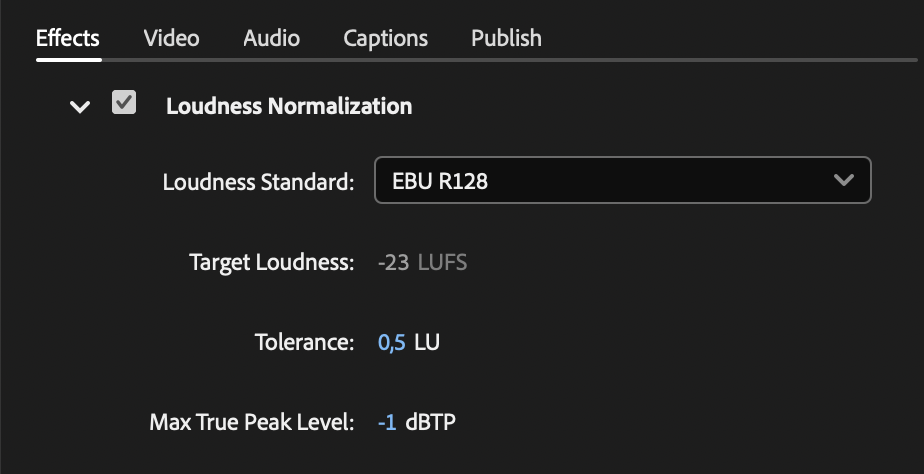

Effects Tab
Select | Audio Normalization |
Loudness Standard | EBU 128 |
Target Loudness | -23 LUFS |
Tolerance | 0.5 LU |
True Max Peak Level | -1 dBTP |
Preset
A Peach Connect Spec Preset for Adobe is available in the download section below.
