All files uploaded to Peach Connect are run through an Auto QC process. To ensure files are not rejected please adhere to the guidelines below.
HD (1080/50i) | |
Container | MXF (OP1a) |
Video | |
Codec | XDCAM HD422 |
Format Profile | 422P@HighLevel |
Frame size | 1920 x 1080 |
Aspect Ratio | 16:9 |
Frame rate | 25 fps |
Interlacing | Upper Field First |
Bitrate | 50 Mbps |
Chroma Subsampling | 4:2:2 |
GOP Length | 12 (M=3, N=12) |
Audio | |
Format | PCM (Little Endian) |
Channels | 2 (1 channel per stream) |
Sample Rate | 48 kHz |
Bit Depth | 16 bits / 24 bits |

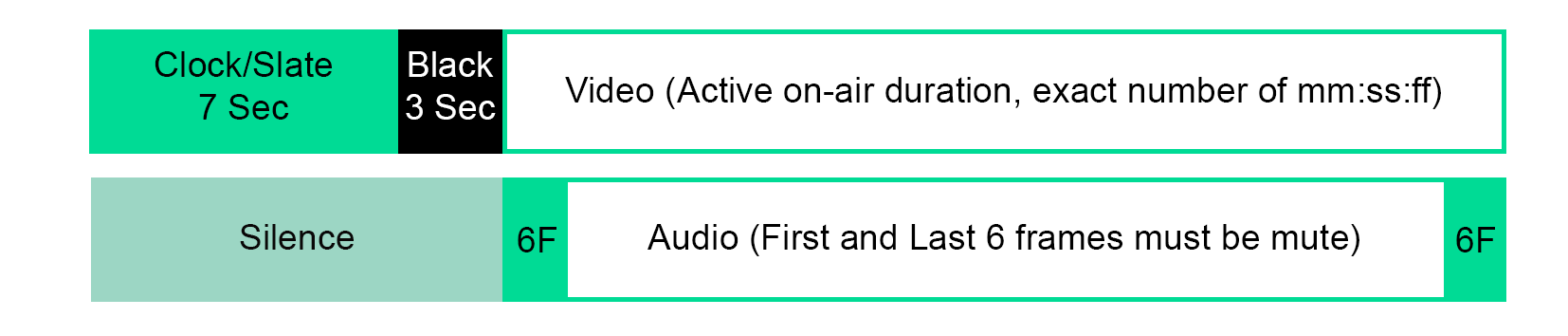

File Layout
Files must be frame accurate and include 10” of pre-roll (7” Clock/Slate + 3” black). No post-roll such as black, hold or freeze is required.
The first and last 6 frames of the infomercial must be mute.

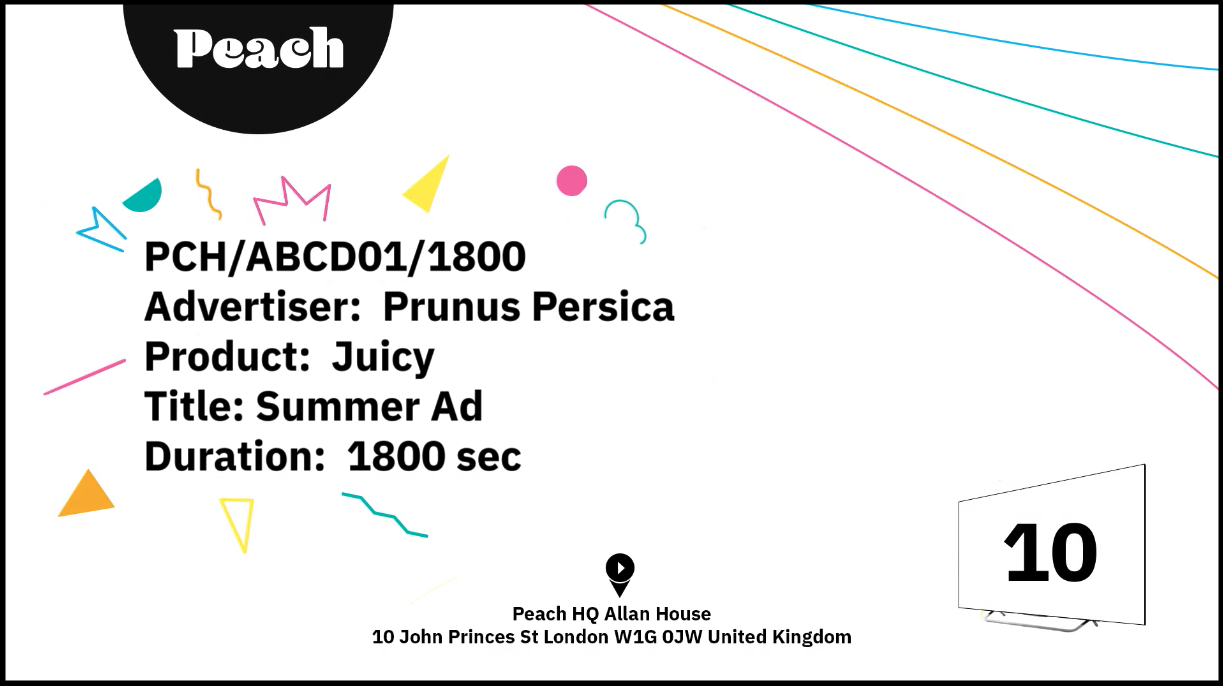

Clock/Slate must include the following information:
Clock Number
Advertiser
Product
Title
Duration
Video Levels
Levels must be in accordance with ITU BT.709 for HD content, and EBU R103-2000 recommendations:
Luma = Level 16-235 (not RGB 0-255 level), equivalent to 0% - 100% or
0mV - 700mV. Chroma = Level 16-240, equivalent to maximum 100% RGB.
All content should be upper/first field dominant throughout and must be free of encoding artefacts, dropout, glitches, blocking, interlace issues or excessive aliasing and considered broadcast quality throughout.
Audio Levels
The Programme Loudness Level must be normalised to -23 LUFS (±0.5 LU) and -1 dBTP max, according to EBU R128 recommendation.
Audio should be free of any distortion, glitches or excessive sibilance and must be in phase and in sync with the video throughout.
Safe Area
Please ensure all On Screen Text is free from spelling and grammatical errors, and within the relevant Safe Area in accordance with EBU R95-2017 recommendations

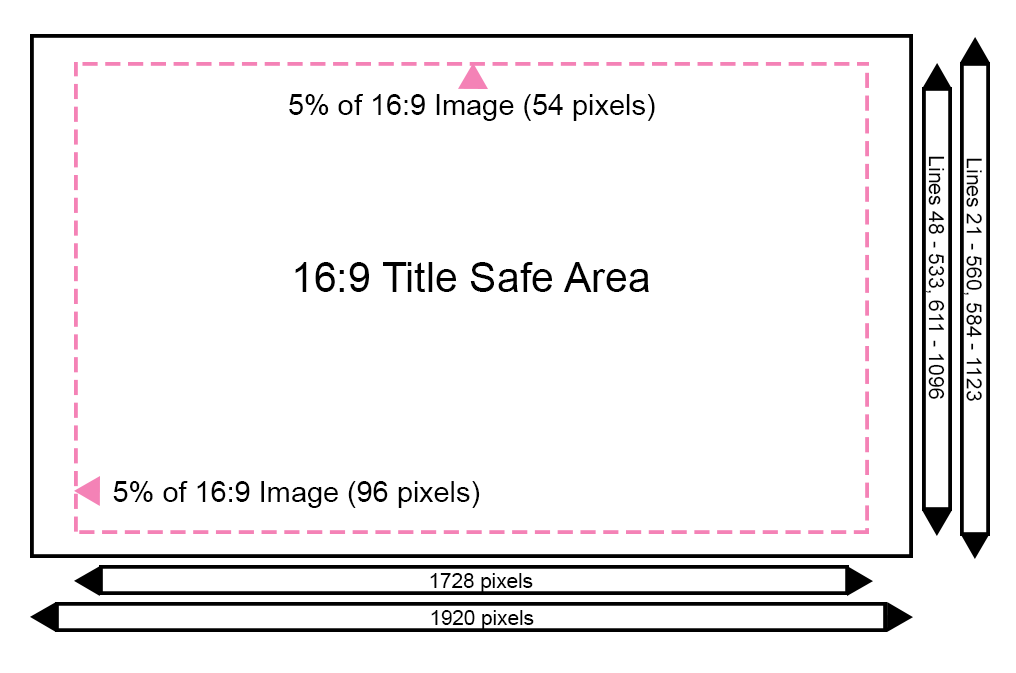

HD Safe Area 1920x1080 Interlaced
Please Note:
Files must be supplied without any empty subtitle data tracks.
