All files uploaded to Peach Connect are immediately run through an Auto QC process. To ensure files are not rejected please adhere to the guidelines below.
|Frame size||1920 x 1080|
|Frame rate||25 fps|
|Interlacing||Upper Field First|
|GOP Length||12 (M=3, N=12)|
|Format||PCM (Little Endian)|
2 (1 channel per stream)
|Sample Rate||48 kHz|
|Bit Depth||16 bits / 24 bits|

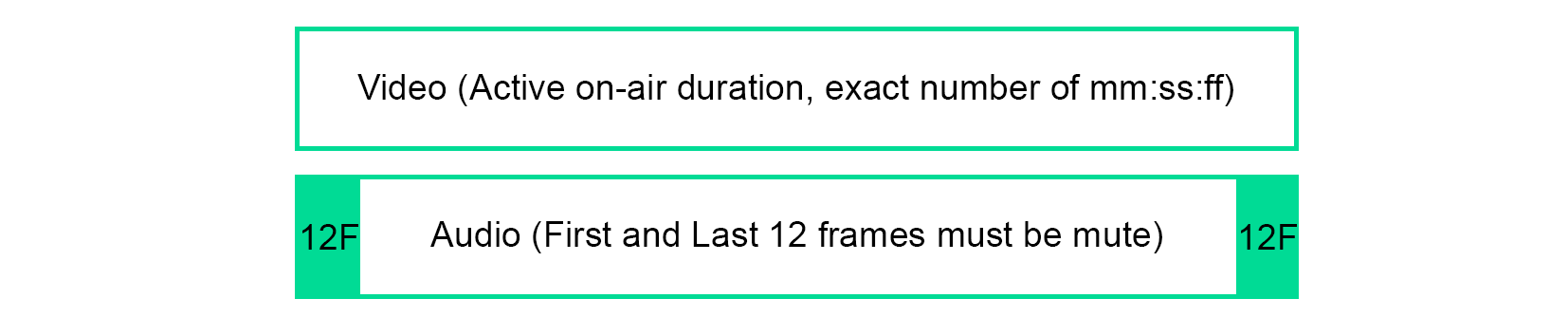

Files must be exact duration; TVC content only. No pre-roll or post-roll such as clock/clapper, bars, black, hold, freeze or audio tone is required.
Content delivered to Australia requires the first and last 12 frames of the audio to be mute.
(This is not a requirement for New Zealand)
Australia - Key Number: Must be capital letters and numbers only, not exceeding 13 characters e.g. PCHDEMO0001HD
New Zealand - https://commercialapprovals.co.nz/standards/key_numbers/
Levels must be in accordance with ITU BT.709 for HD content, and EBU R103-2000 recommendations:
Luma = Level 16-235 (not RGB 0-255 level), equivalent to 0% - 100% or
0mV - 700mV.
Chroma = Level 16-240, equivalent to maximum 100% RGB.
All content should be upper and first field dominant throughout and must be free of encoding artefacts, dropout, glitches, blocking, interlace issues or excessive aliasing and considered broadcast quality throughout.
The Programme Loudness Level must be normalised to -24 LUFS (±1.0 LU) and -2 dBTP max as per BS1770-3 measurement for R128.
Audio should be free of any distortion, glitches or excessive sibilance and must be in phase and in sync with the video throughout.

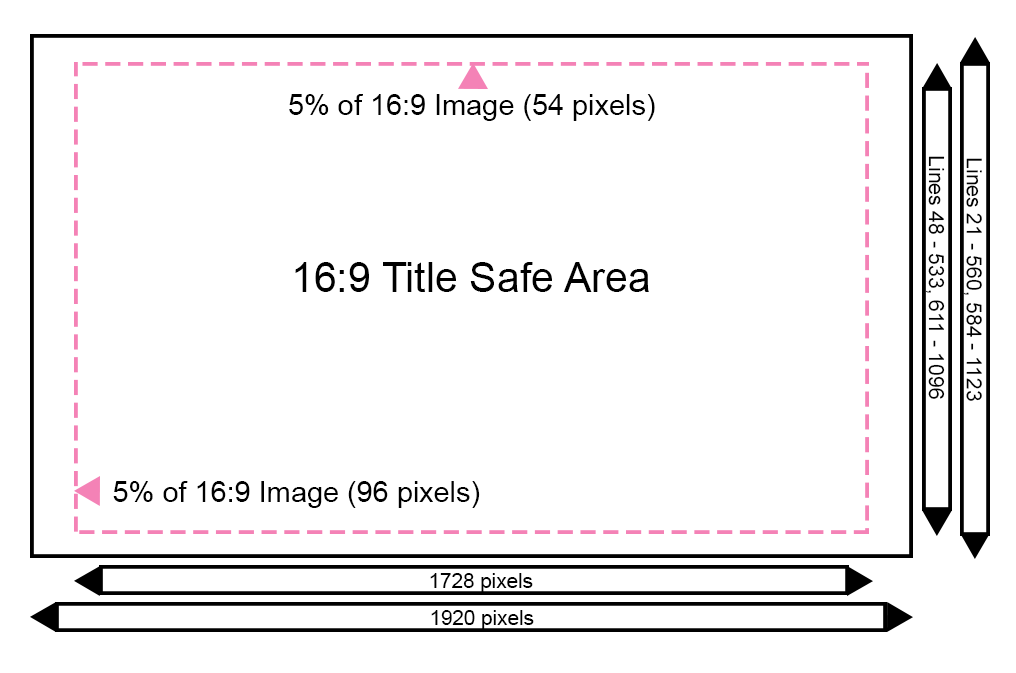

Please ensure all On Screen Text is free from spelling and grammatical errors, and within the relevant Safe Area in accordance with EBU R95-2017 recommendations
HD Safe Area 1920x1080 Interlaced
