Please refer to the relevant Peach Connect Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.

This document is intended as a guide only for the export of content from Final Cut Pro 7. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.

If any assistance is required please contact the Customer Success team who are available via Chat within Peach Connect.

The encoding process and final quality of files remain the responsibility of the supplier. Peach cannot accept liability for incorrect or low-quality encoding.

Set Up

The purpose of this guide is to suggest a freeware workflow for FCP 7 Mac based users to export XDCAM HD 422 MXF-wrapped digital files suitable for uploading to Peach Connect.

This will allow FCP 7 to make broadcast-format MXF files. The component detailed in this document is free, and in the public domain.

Required Components

Sony’s XDCAM Transfer version 2.13 is required to complete the workflow described below.

https://pro.sony/en_GB/product-resources/software/1237485726895

Installation and Use

Note that you must agree to the Sony license agreement before download, and that the file name is: PDZK-P1_XDCAM_Transfer_v2_13_0.zip

The file should be unzipped automatically by MacOS, and can be installed in the conventional way.

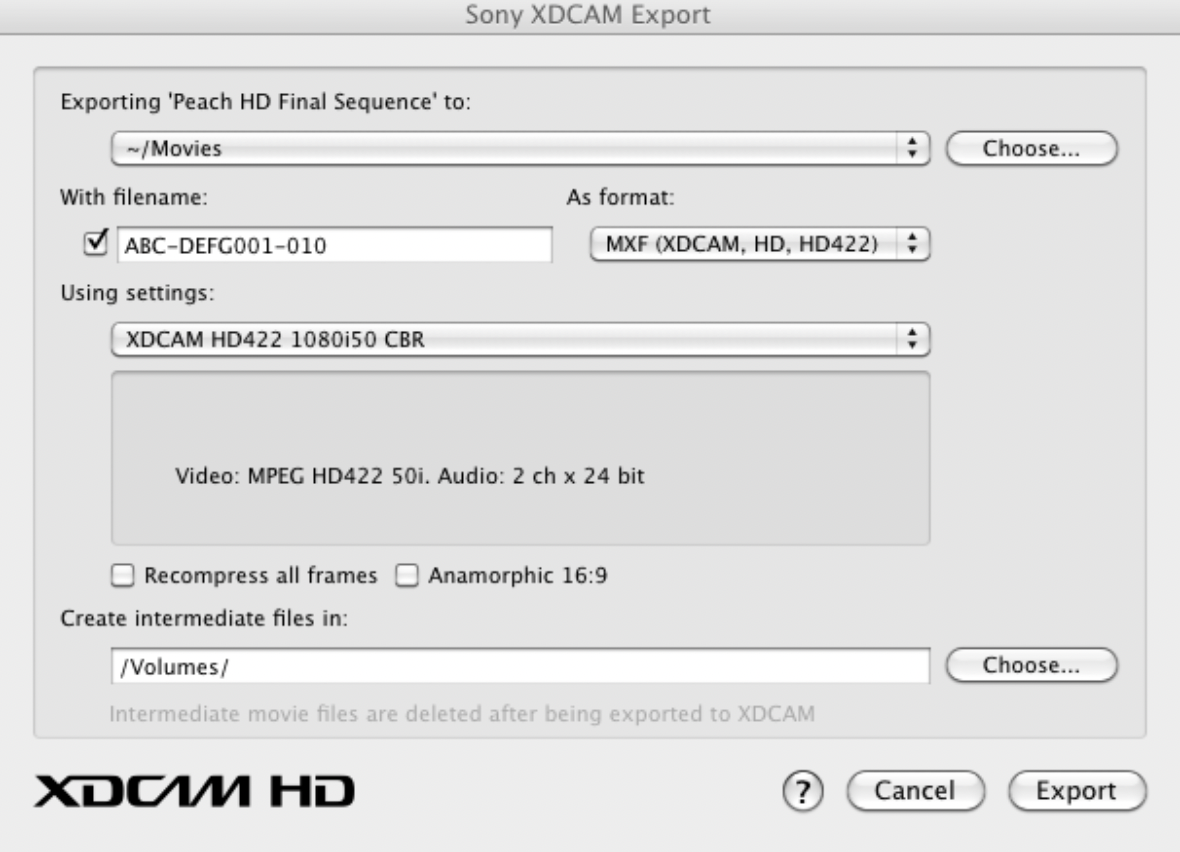

After restarting FCP 7, there will be a new Export option, called Sony XDCAM, as shown here:

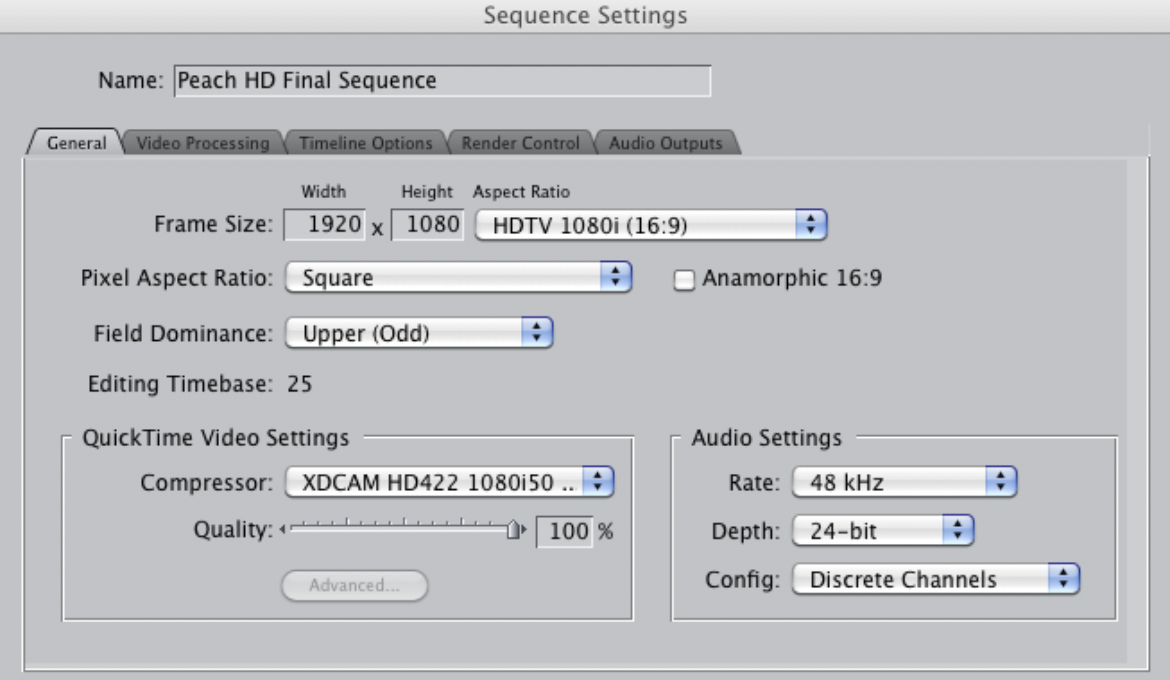

Sequence Settings

Select	Sequence, Settings, General
Frame Size	1920 x 1080 HDTV 1080i (16:9)
Pixel Aspect Ratio	Square
Anamorphic 16:9	Do Not Select
Field Dominance	Upper (Odd)
Editing Timebase	25 or 29.97 as required
Compressor	XDCAM HD422 1080i50 (50Mb/s) or
Compressor	XDCAM HD422 1080i60 (50Mb/s) as required
Rate	48kHz
Depth	16-bit or 24-bit
Config:	Discrete Channels

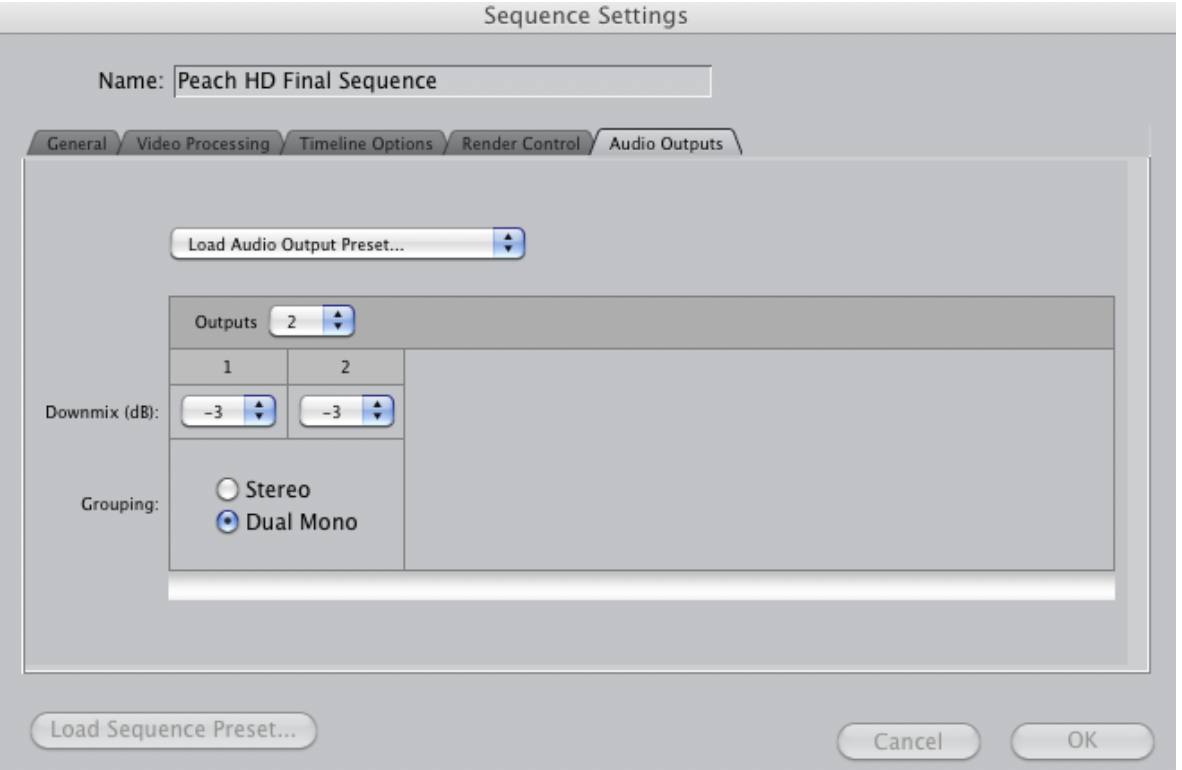

Audio Outputs

Outputs	2
Downmix (dB)	-3 (Set for both Channels 1 & 2)
Grouping	Dual Mono
Click	OK to Save Settings

Exporting File

Select	The Final Sequence
Select	File, Share, Master File
Select	Settings
Format	MXF
Video codec	XDCAM HD422 (50Mpbs)
Using Settings	XDCAM HD422 1080i50 CBR (PAL) or
Using Settings	XDCAM HD422 1080i50 (NTSC) as required
Click	Export to Save File

XDCAM Transfer Application

The XDCAM Transfer installation also installs a stand-alone application which can be used to preview any XDCAM MXF files. This can be used to check back the exported MXF file before upload to Peach Connect.

Please note

Some sequences may require a Video Limiter or Broadcast Safe filter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.

Please ensure Audio levels are set correctly before beginning the export process.
