All files uploaded to Peach Connect are immediately run through an Auto QC process. To ensure files are not rejected please adhere to the guidelines below.
| HD (1080/50i) | |
| Container | Mov |
| Video | |
| Codec | Pro Res 422/Pro Res HQ |
| Video Bit Depth | 10 bits |
| Frame size | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Frame rate | 25 fps |
| Interlacing | Progressive or Interlaced |
| Bitrate | 140 Mbps/205 Mbps |
| Chroma Subsampling | 4:2:2 |
| Audio | |
| Format | PCM (Little Endian) |
| Channels | 2 |
| Sample Rate | 48 kHz |
| Bit Depth | 16 bits / 24 bits |
File Layout
Files must be exact duration; TVC content only. No pre or post roll such as clock/slate, bars, black, hold, freeze or audio tone is required.
Asharq HD - 15 Frames Fade In/Out
Video Levels
Levels must be in accordance with ITU BT.709 for HD content, and EBU R103-2000 recommendations:
Luma = Level 16-235 (not RGB 0-255 level), equivalent to 0% - 100% or
0mV - 700mV. Chroma = Level 16-240, equivalent to maximum 100% RGB.
All content should be upper and first field dominant throughout and must be free of encoding artefacts, dropout, glitches, blocking, interlace issues or excessive aliasing and considered broadcast quality throughout.
Audio Levels
Unless stated otherwise, the Audio True Peak level must not exceed -1dBTP for both Loudness (-23LUFS) and Peak (-10dBFS) mixes.
It should also be free of any distortion, glitches or excessive sibilance and must be in phase and in sync with the video throughout.
Safe Area
Please ensure all On Screen Text is free from spelling and grammatical errors, and within the relevant Safe Area in accordance with EBU R95-2017 recommendations.
HD Safe Areas 1920x1080 Interlaced
|
Text Safe Area |
Height (Top & Bottom) |
Width (Left & Right) |
| 16:9 Action Safe | 3.5% (38 Pixels) | 3.5% (67 Pixels) |
| 16:9 Title Safe | 5% (54 Pixels) | 5% (96 Pixels) |
| 14:9 Action Safe | 3.5% (38 Pixels) | 10% (192 Pixels) |
| 14:9 Title Safe | 5% (54 Pixels) | 15% (284 Pixels) |
| 4:3 Action Safe | 3.5% (38 Pixels) | 15.1% (286 Pixels) |
| 4:3 Title Safe | 5% (54 Pixels) | 16.25% (312 Pixels) |

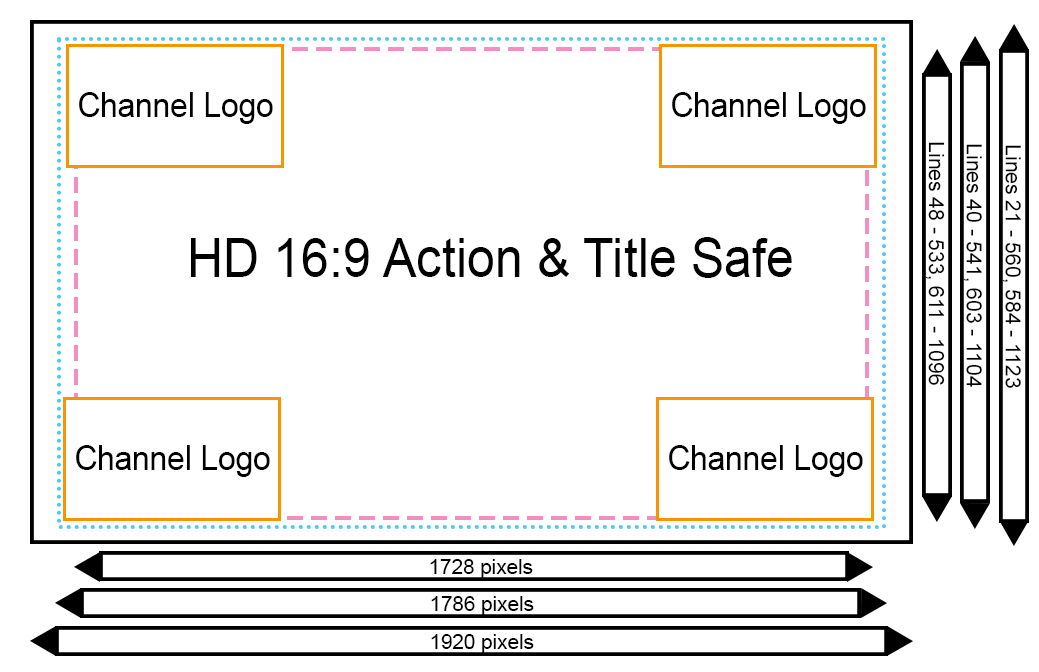

Channel Logo Placement - Middle East
Where specified please use SD Text Safe Area if sending to SD destinations.
Country Specifics
|
Algeria |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Angola |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Botswana |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 4:3 Action Safe |
|
Egypt |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe
Other: All files delivered to the Egyptian market need to have a TRN (Tax Registration Number) visible on the creative. |
|
Ethiopia |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Ghana |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Iraq |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Israel |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 16:9 Action Safe |
|
Ivory Coast |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Kenya |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 4:3 Action Safe |
|
Kuwait |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa Text Safe Area: 16:9 Title Safe |
|
Lebanon |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Morocco |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Mozambique |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 4:3 Action Safe |
|
Qatar |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Saudi Arabia |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 16:9 Title Safe |
|
Senegal |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
South Africa |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 1.0LU) max. True Peak: -3 dBTP Text Safe Area: HD 16:9 Action Safe / SD 4:3 Action Safe |
|
Syria |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Tanzania |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Tunisia |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Turkey |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Action Safe / SD 4:3 Action Safe |
|
Uganda |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
United Arab Emirates |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Zambia |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa Text Safe Area: HD 16:9 Title Safe / SD 4:3 Action Safe |
|
Zimbabwe |
Video Format: HD (1080/50i) Audio Levels: -10 dBFS / 6 PPM (Type IIa) Text Safe Area: 4:3 Action Safe |
|
Pan-Africa (Via South Africa) |
Video Format: HD (1080/50i) Audio Levels: R128 (-23LUFS ± 1.0LU) max. True Peak: -3 dBTP Text Safe Area: HD 16:9 Action Safe / SD 4:3 Action Safe |
