Please refer to the relevant Peach Connect Technical Specification for full details of the file requirements. This includes information regarding file layout, video and audio levels and frame rate.
This document is intended as a guide only for the export of content from Final Cut Pro X. Suppliers should perform their own encoding tests and quality control to verify final settings achieve the required specification and level of quality.
If any assistance is required please contact the Customer Success team who are available via Chat within Peach Connect.
The encoding process and final quality of files remain the responsibility of the supplier. Peach cannot accept liability for incorrect or low-quality encoding.
Project Set Up
Please ensure the Final Cut Pro X Project is set correctly before beginning the export process. HD export options are only available within an HD project. Project Settings will determine the definition, frame rate and field order of the exported file.

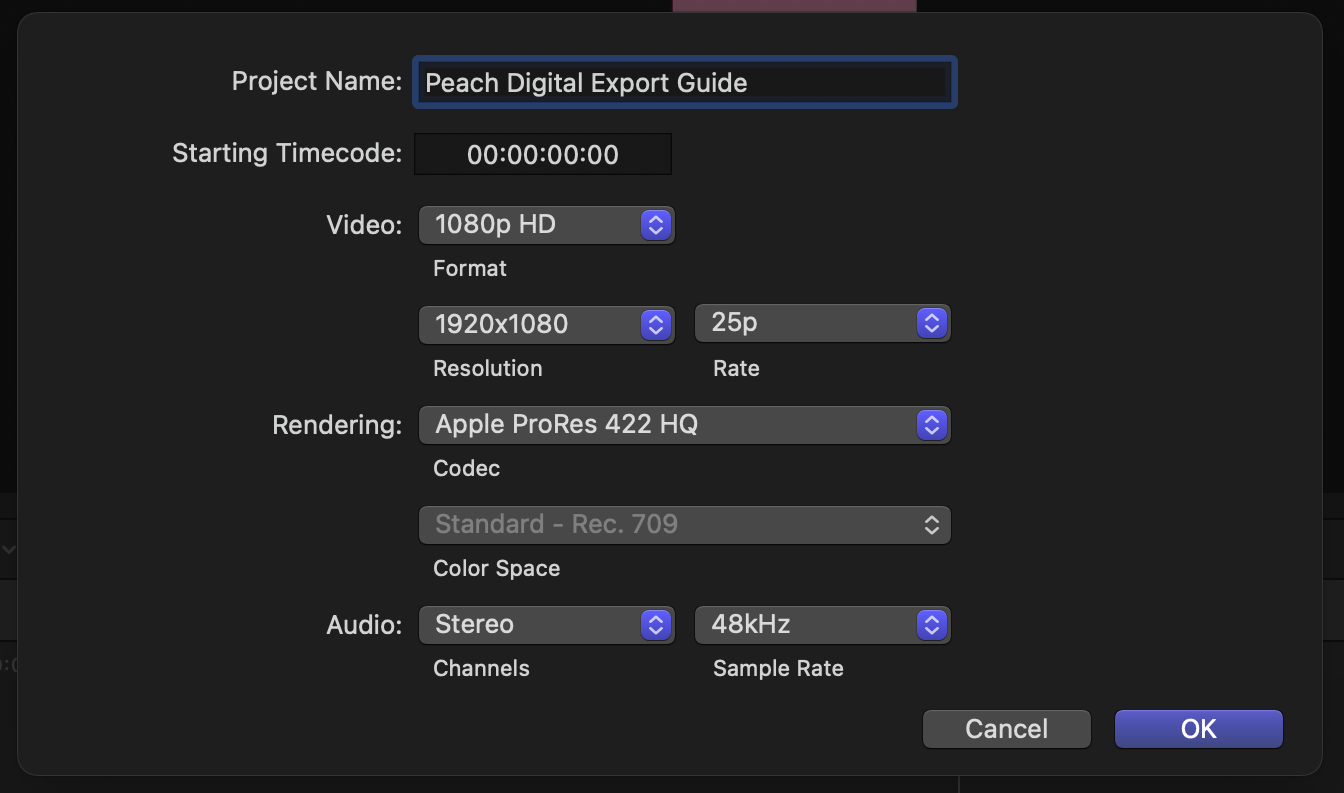

Project Settings
| Select | The Final Sequence |
| In Inspector Window | Modify |
| Video - Format | 1080p HD |
| Vertical | |
| Square | |
| Custom | |
| Video - Resolution | 1920 x 1080 (16:9) |
| 1080 x 1080 (1:1) | |
| 1080 x 1920 (9:16) | |
| 1080 x 1620 (2:3) | |
| 1080 x 1440 (3:4) | |
| 1080 x 1350 (4:5) | |
| Rate | 23.98p, 24p, 25p, 29.97p or 30p |
| Rendering | Apple ProRes 422 or higher (This is not the final export Codec) |
| Audio | Stereo |
| Sample Rate | 48kHz |
| Click | OK |

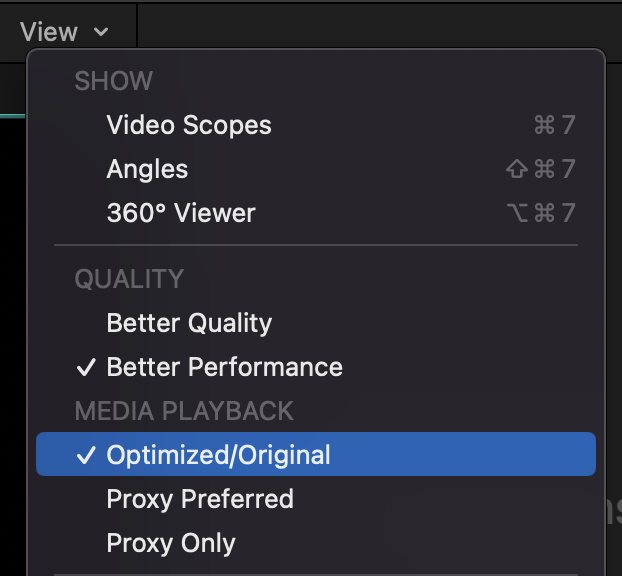

Optimize Output
To ensure the highest quality when exporting the file check the sequence is set to use optimised media to create the shared file.
| Select | The Final Sequence |
| In Inspector Window | Modify |
| Select | Optimized/Original |

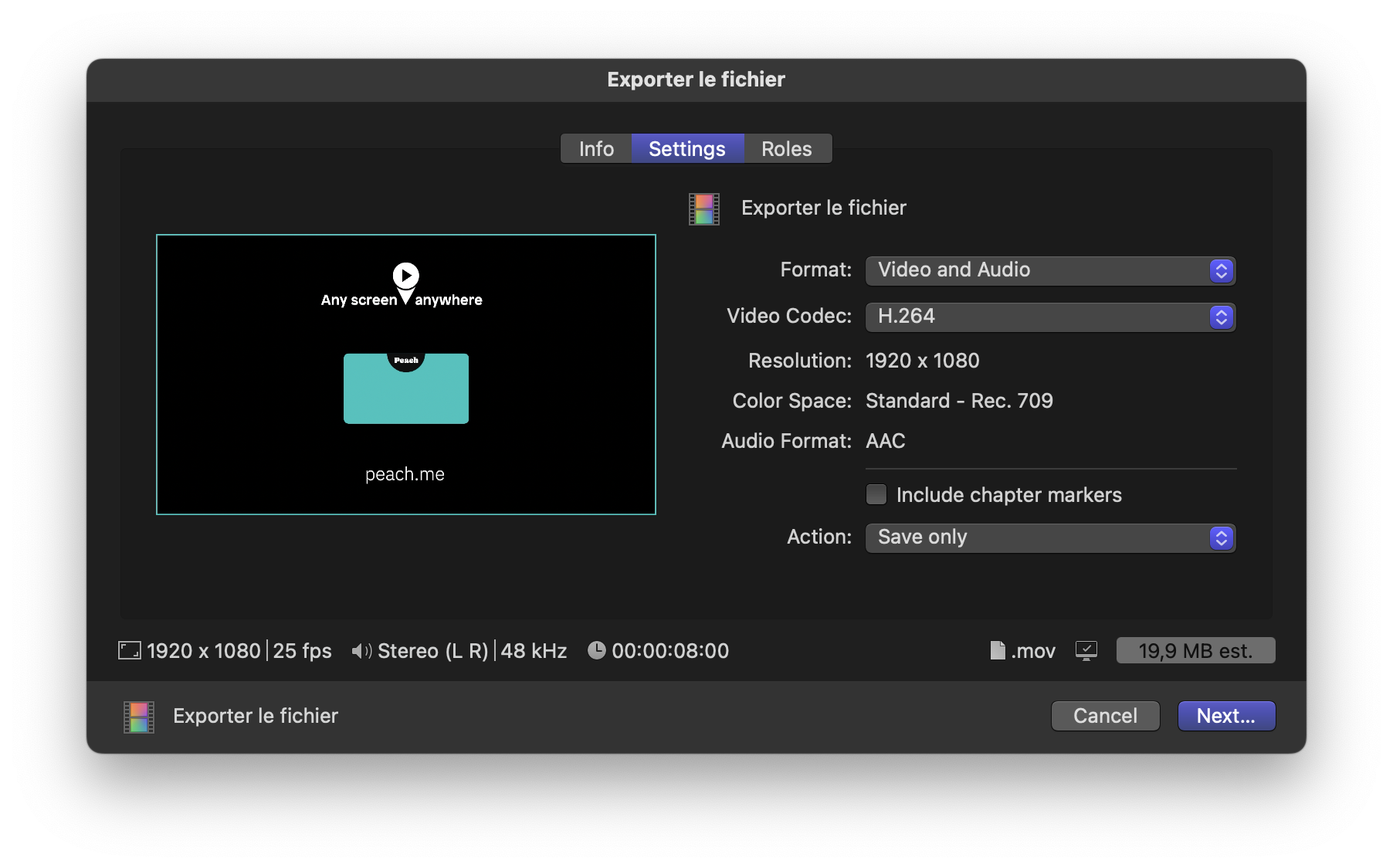

Export Sequence
| Select | The Final Sequence |
| Select | File, Share, Master File |
| Select | Settings |
| Format | Video and Audio |
| Video codec | H264 |
| Click | Next |

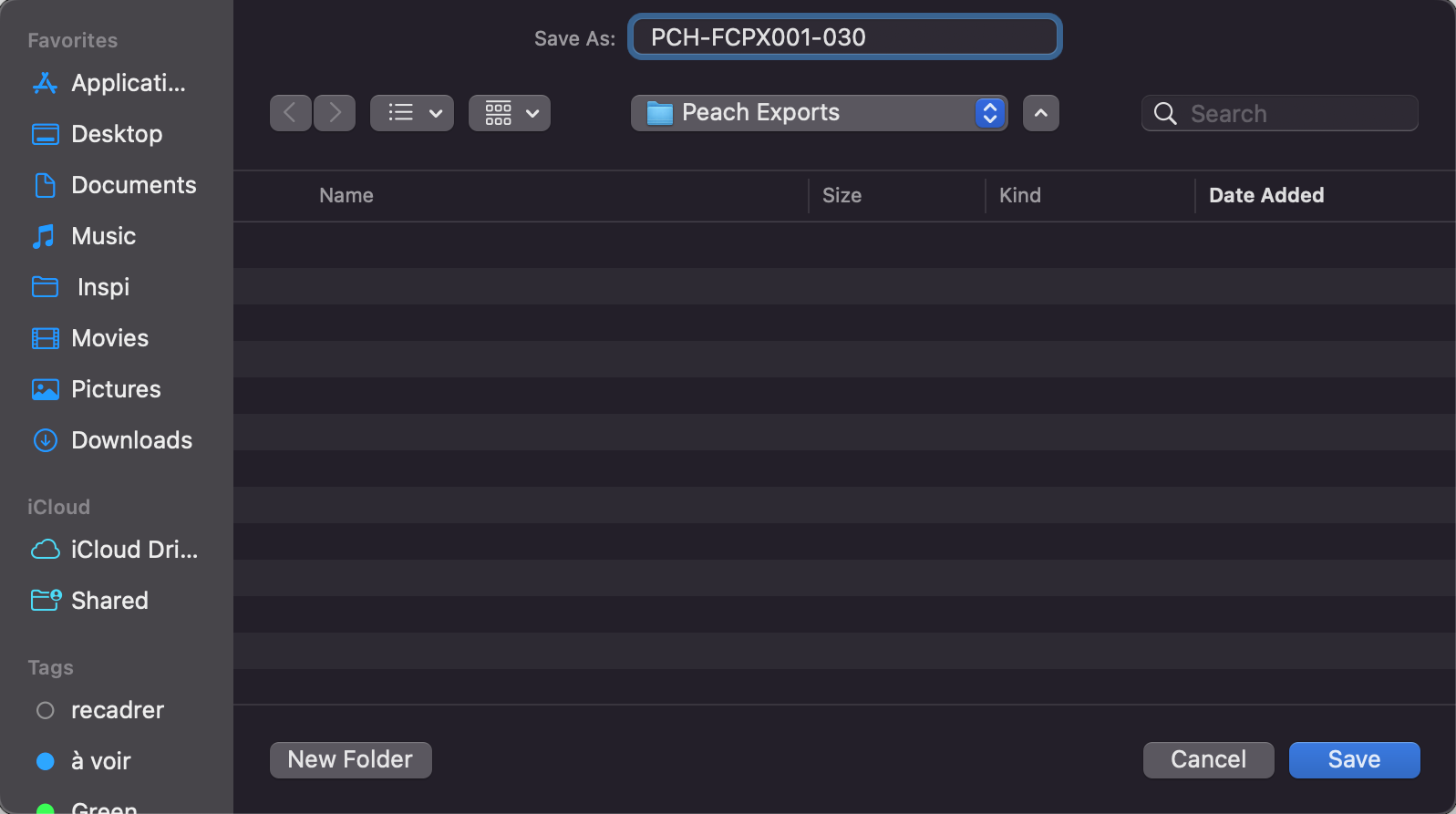

Save As
| Save As | Name File (Should match Version ID) |
| Choose | File Location |
| Click | Save to Export File |
Please note
Some sequences may require a Video Limiter or Broadcast Safe filter to be applied before export to ensure Chrominance and Luminance levels are within specified limits.
Please ensure Audio levels are set correctly before beginning the export process.
If a file fails QC because of the Bitrate, a source file of higher quality will be needed.
